Overview

Accura 2350-TEMP module provides data on the internal and external temperature
and internal humidity of industrial control panels.

An event occurs when the internal/external temperature or the temperature difference
rises above the set threshold.

When an event occurs in Accura 2350-TEMP module, the EVENT LED on the front of the module blinks.

When an event occurs in Accura TSEN/THSEN device, the Red LED on the front of the device
blinks.(The Green LED is on during normal operation.)

Internal temperature events are reset with the RESET button on Accura TSEN/THSEN.

Up to 6 Accura TSEN/THSEN devices can be connected to Accura 2350-TEMP module
using the communication cable² up to 100 m¹ long.

The module supports 1 digital input channel and 1 digital output channel.

1. It indicates the maximum cable length between Accura 2350-TEMP and Accura TSEN/THSEN
when Accura 2350-TEMP is the first module connected to Accura 2300[S].
2. The communication cables used to connect Accura 2350-TEMP to Accura TSEN/THSEN are not provided.

Download Catalog

AccuraSM Program Download

Distribution Panel Digital Power Meter

Accura 2300/2350 Accura 2300S/2350

Input/Output Module

Accura 2350-TEMP

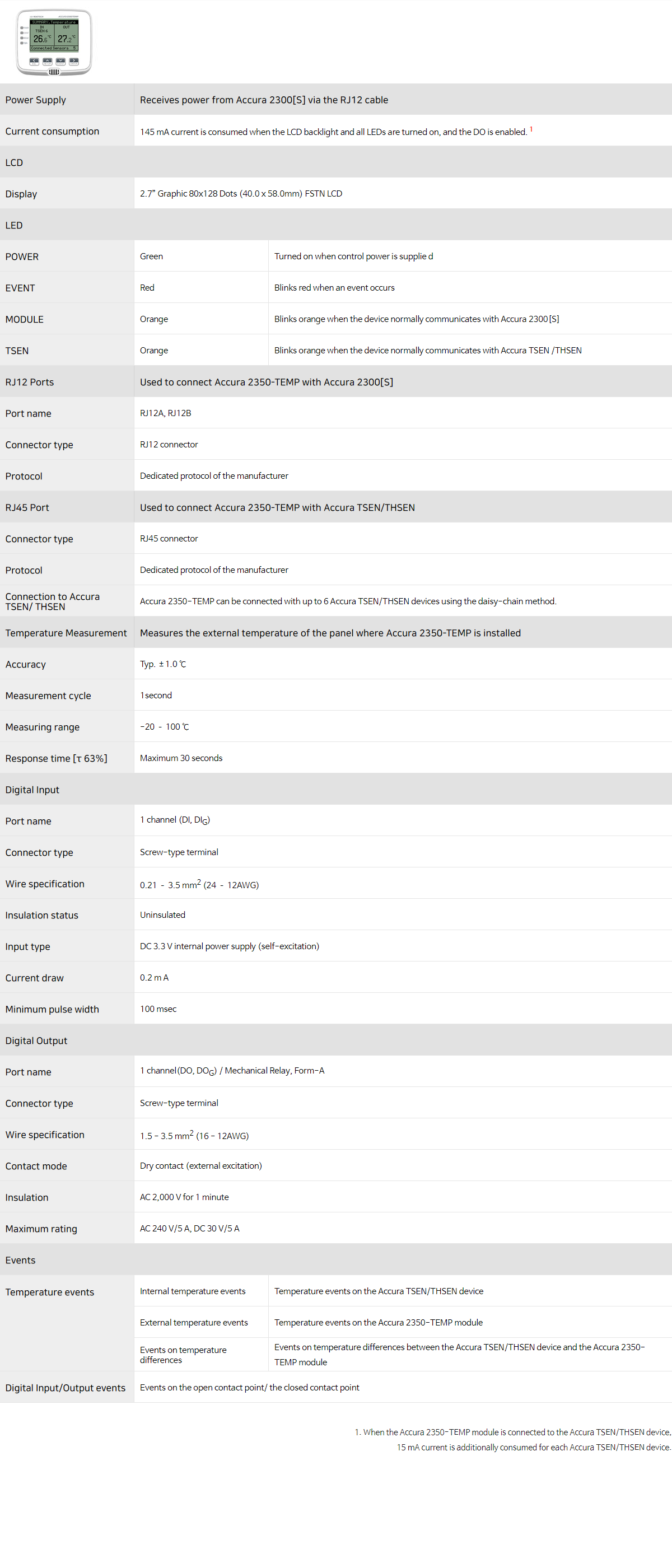

Power Supply	Receives power from Accura 2300[S] via the RJ12 cable
Current consumption	145 mA current is consumed when the LCD backlight and all LEDs are turned on, and the DO is enabled.¹
LCD
Display	2.7” Graphic 80x128 Dots (40.0 x 58.0mm) FSTN LCD
LED
POWER	Green	Turned on when control power is supplie d
EVENT	Red	Blinks red when an event occurs
MODULE	Orange	Blinks orange when the device normally communicates with Accura 2300[S]
TSEN	Orange	Blinks orange when the device normally communicates with Accura TSEN /THSEN
RJ12 Ports	Used to connect Accura 2350-TEMP with Accura 2300[S]
Port name	RJ12A, RJ12B
Connector type	RJ12 connector
Protocol	Dedicated protocol of the manufacturer
RJ45 Port	Used to connect Accura 2350-TEMP with Accura TSEN/THSEN
Connector type	RJ45 connector
Protocol	Dedicated protocol of the manufacturer
Connection to Accura TSEN/ THSEN	Accura 2350-TEMP can be connected with up to 6 Accura TSEN/THSEN devices using the daisy-chain method.
Temperature Measurement	Measures the external temperature of the panel where Accura 2350-TEMP is installed
Accuracy	Typ. ±1.0 ℃
Measurement cycle	1second
Measuring range	-20 – 100 ℃
Response time [τ 63%]	Maximum 30 seconds
Digital Input
Port name	1 channel (DI, DI_G)
Connector type	Screw-type terminal
Wire specification	0.21 – 3.5 mm² (24 – 12AWG)
Insulation status	Uninsulated
Input type	DC 3.3 V internal power supply (self-excitation)
Current draw	0.2 m A
Minimum pulse width	100 msec
Digital Output
Port name	1 channel(DO, DO_G) / Mechanical Relay, Form-A
Connector type	Screw-type terminal
Wire specification	1.5 - 3.5 mm² (16 - 12AWG)
Contact mode	Dry contact (external excitation)
Insulation	AC 2,000 V for 1 minute
Maximum rating	AC 240 V/5 A, DC 30 V/5 A
Events
Temperature events	Internal temperature events	Temperature events on the Accura TSEN/THSEN device
	External temperature events	Temperature events on the Accura 2350-TEMP module
	Events on temperature differences	Events on temperature differences between the Accura TSEN/THSEN device and the Accura 2350-TEMP module
Digital Input/Output events	Events on the open contact point/ the closed contact point

1. When the Accura 2350-TEMP module is connected to the Accura TSEN/THSEN device,
15 mA current is additionally consumed for each Accura TSEN/THSEN device.

Accura TSEN/THSEN

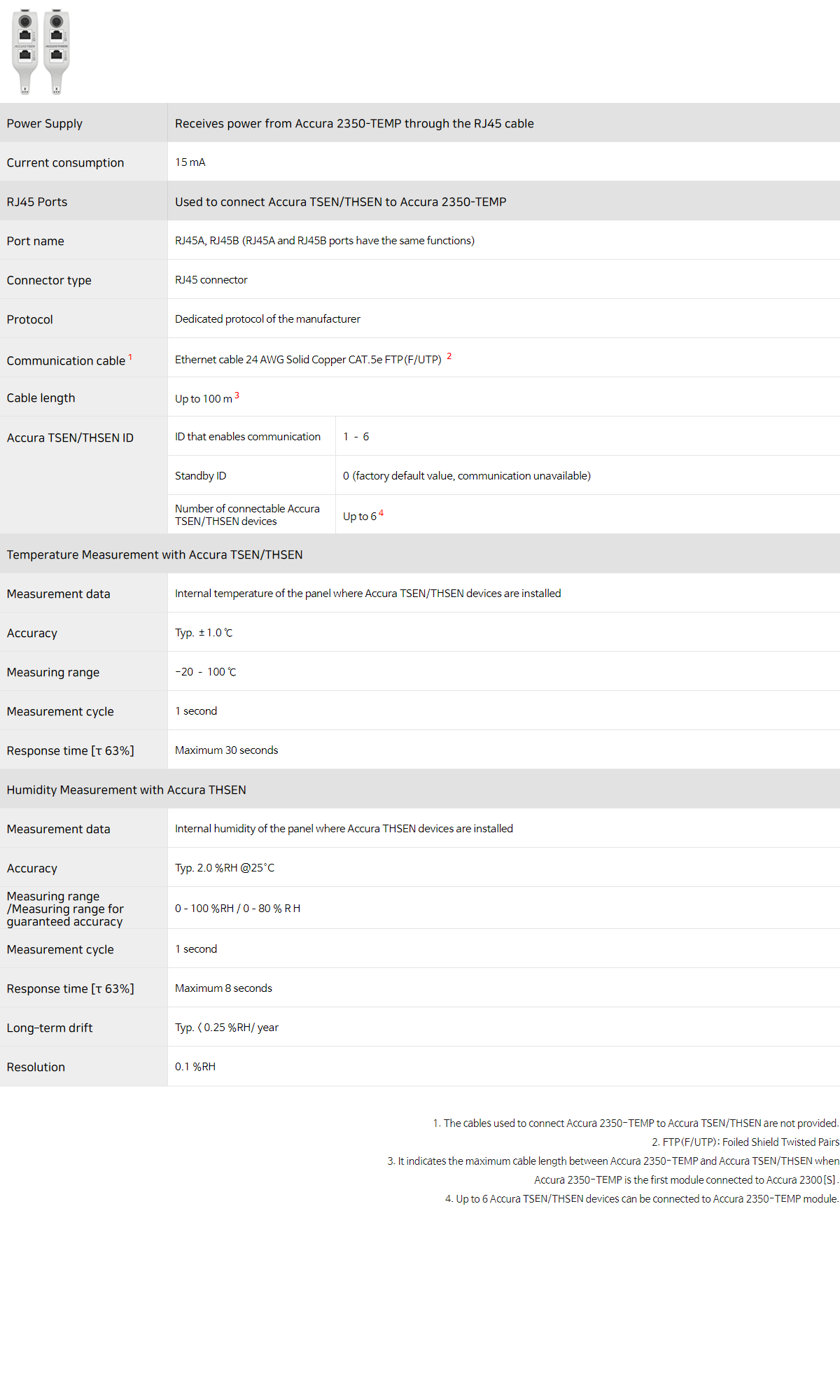

Power Supply	Receives power from Accura 2350-TEMP through the RJ45 cable
Current consumption	15 mA
RJ45 Ports	Used to connect Accura TSEN/THSEN to Accura 2350-TEMP
Port name	RJ45A, RJ45B (RJ45A and RJ45B ports have the same functions)
Connector type	RJ45 connector
Protocol	Dedicated protocol of the manufacturer
Communication cable¹	Ethernet cable 24 AWG Solid Copper CAT.5e FTP(F/UTP) ²
Cable length	Up to 100 m³
Accura TSEN/THSEN ID	ID that enables communication	1 – 6
	Standby ID	0 (factory default value, communication unavailable)
	Number of connectable Accura TSEN/THSEN devices	Up to 6⁴
Temperature Measurement with Accura TSEN/THSEN
Measurement data	Internal temperature of the panel where Accura TSEN/THSEN devices are installed
Accuracy	Typ. ±1.0 ℃
Measuring range	-20 – 100 ℃
Measurement cycle	1 second
Response time [τ 63%]	Maximum 30 seconds
Humidity Measurement with Accura THSEN
Measurement data	Internal humidity of the panel where Accura THSEN devices are installed
Accuracy	Typ. 2.0 %RH @25°C
Measuring range /Measuring range for guaranteed accuracy	0–100 %RH / 0–80 % R H
Measurement cycle	1 second
Response time [τ 63%]	Maximum 8 seconds
Long–term drift	Typ. < 0.25 %RH/ year
Resolution	0.1 %RH

1. The cables used to connect Accura 2350-TEMP to Accura TSEN/THSEN are not provided.
2. FTP(F/UTP): Foiled Shield Twisted Pairs
3. It indicates the maximum cable length between Accura 2350-TEMP and Accura TSEN/THSEN when
Accura 2350-TEMP is the first module connected to Accura 2300[S].
4. Up to 6 Accura TSEN/THSEN devices can be connected to Accura 2350-TEMP module.

Environmental Conditions

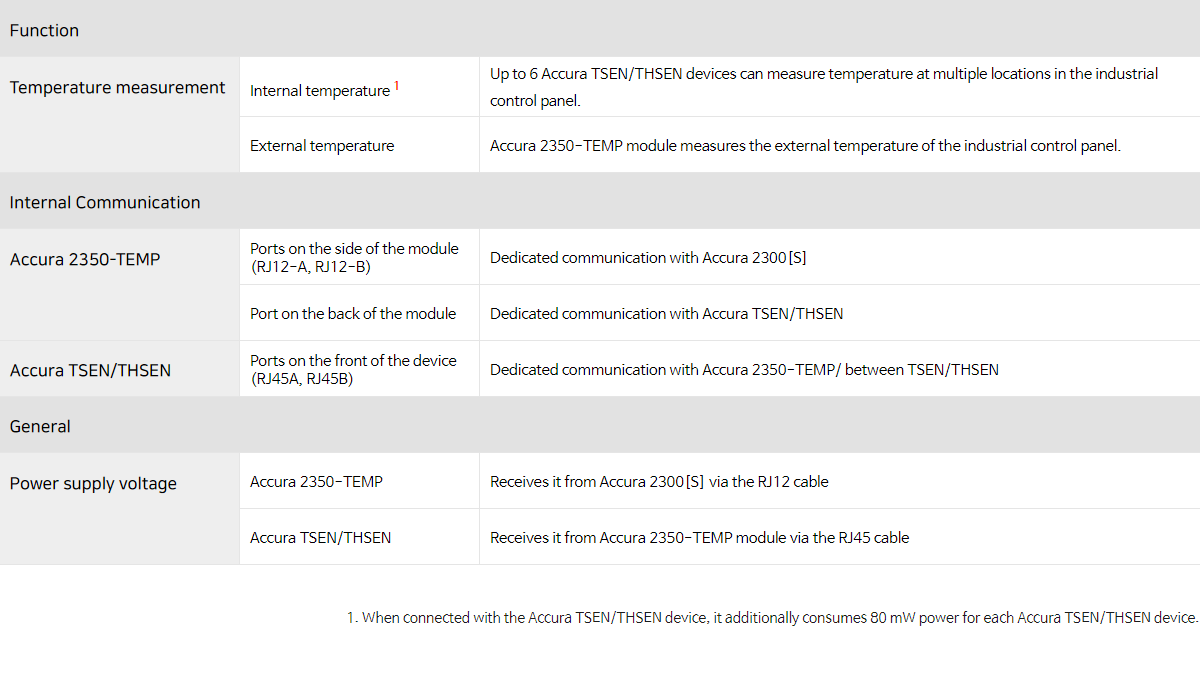

Function
Temperature measurement	Internal temperature¹	Up to 6 Accura TSEN/THSEN devices can measure temperature at multiple locations in the industrial control panel.
Temperature measurement	External temperature	Accura 2350-TEMP module measures the external temperature of the industrial control panel.
Internal Communication
Accura 2350-TEMP	Ports on the side of the module (RJ12-A, RJ12-B)	Dedicated communication with Accura 2300[S]
Accura 2350-TEMP	Port on the back of the module	Dedicated communication with Accura TSEN/THSEN
Accura TSEN/THSEN	Ports on the front of the device (RJ45A, RJ45B)	Dedicated communication with Accura 2350-TEMP/ between TSEN/THSEN
General
Power supply voltage	Accura 2350-TEMP	Receives it from Accura 2300[S] via the RJ12 cable
Power supply voltage	Accura TSEN/THSEN	Receives it from Accura 2350-TEMP module via the RJ45 cable

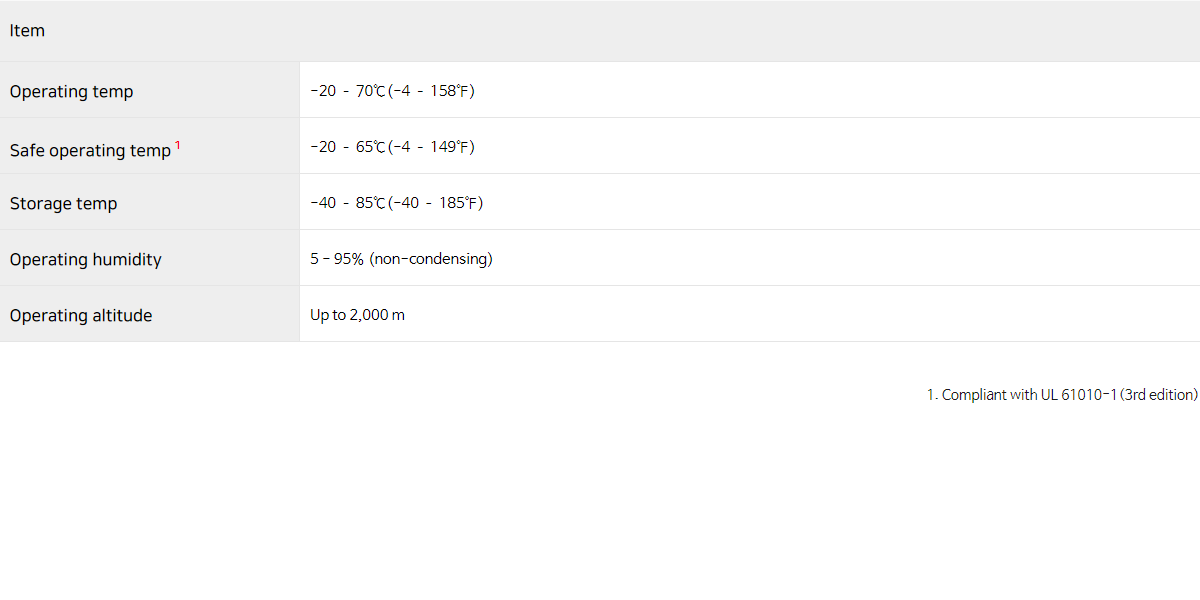

Item
Operating temp	-20 – 70℃(-4 – 158℉)
Safe operating temp¹	-20 – 65℃(-4 – 149℉)
Storage temp	-40 – 85℃(-40 – 185℉)
Operating humidity	5 - 95% (non-condensing)
Operating altitude	Up to 2,000 m
