Feeder Measurement & Control
Accura 2750P[C]

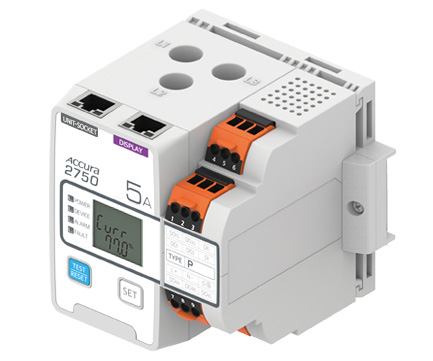

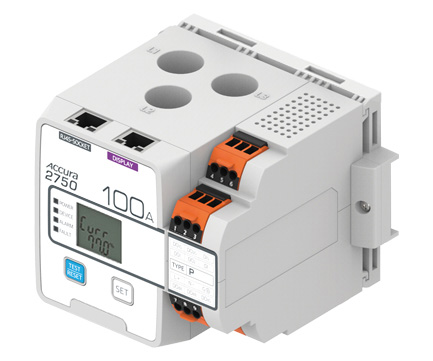

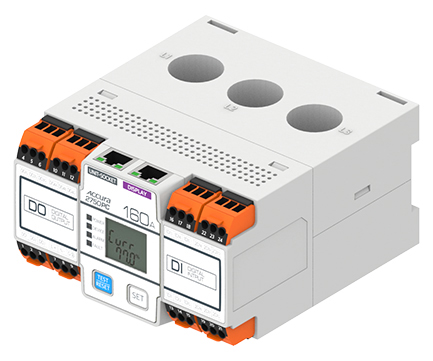

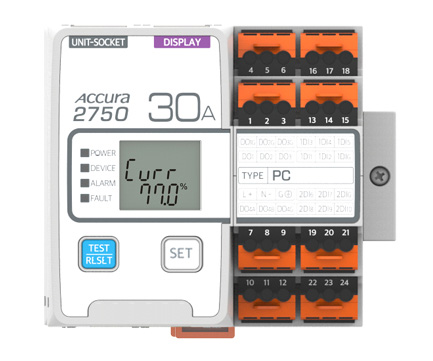

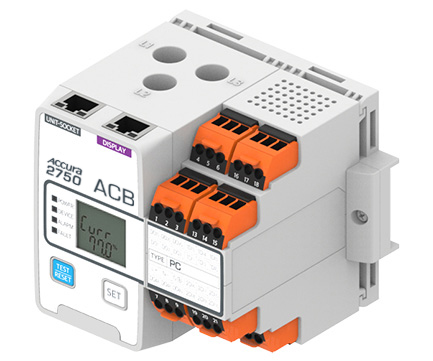

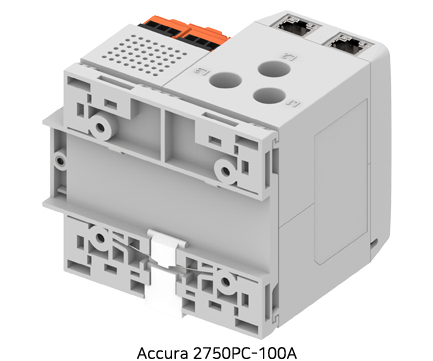

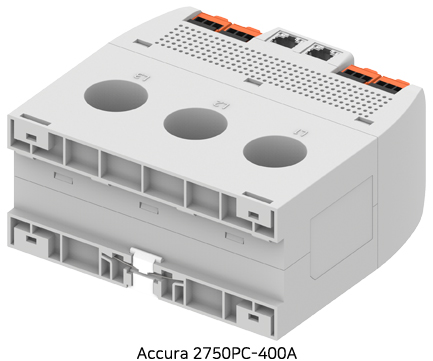

Accura 2750P[C]

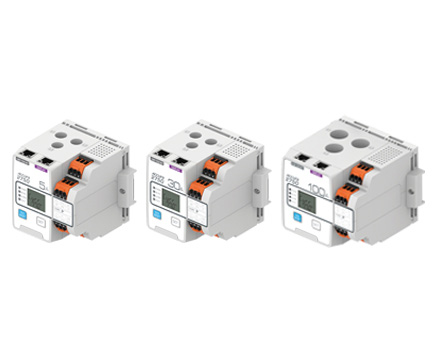

Motor-Unit Protection[Control] Module

Accura 2750P[C]
Motor-Unit Protection[Control] Module

Overview
Deals with Management Need for Consumption Power of Motor and Improves MCC Space Efficiency
Precision Measurement to meet IEC 61557-12 Class 0.5
Blocks the Spread of Accident by Ground Current through Accurate Measurement of Ground Current
Provides Two Type Modules(Protection Module/Protection&Control Module) for Selection According to Purpose

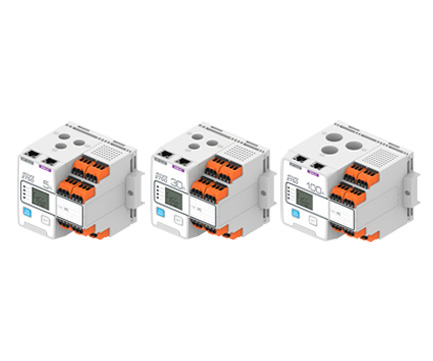

Diversification of Rated Current of Motor-Unit Protection[Control] Module for MCC Space Efficiency and Precision Measurement
Providing power/energy based on inverter output voltage measurement of inverter-driving motor-unit
Provides Convenience for Maintenance
HMI Module that Supports Device Redundancy
Excellent Field Analysis through Integrated HMI Module with Color Touch TFT LCD
LOP Control Module and LOP Control Gateway for Communication with LOP(Local Operating Panel)
Communication Redundancy with Improved Communication Reliability between Devices
Supports Device Redundancy for the Field that Requires High Reliability
Provides Setup Manager for All Setting and Commissioning through Communication
Provides Control Logic Editor to Provide Control Flexibility
Possible to Implement MCC Level Control Logic
Redundancy support for Device protection function
- AND-Logic Operation: AND-Logic Operation of Two Devices
Support for communication redundancy: Ring connection
- Active-Standby Operation
Motor-unit Measurement
- Voltage IEC61557-12 Class 0.5
- Current IEC61557-12 Class 0.5
- Power IEC62053-22 Class 0.5S
- Ground current[ZCT] ±1% Reading
- Demand, Peak Demand
- Harmonics, THD, TDD, Phasor, Unbalance
Motor-unit Protection
- Thermal relay(THR), Over current relay, JAM relay, Long start relay, Unbalance current relay, Phase out current relay, Phase sequence relay, Under current relay, Ground fault relay[ZCT]
Motor-unit Control
- Motor start stop command
- Starter mode: Direct starter, reversing starter, 2-speed starter, 2-step starter
Download Catalog
Accura 2700/2750
Features

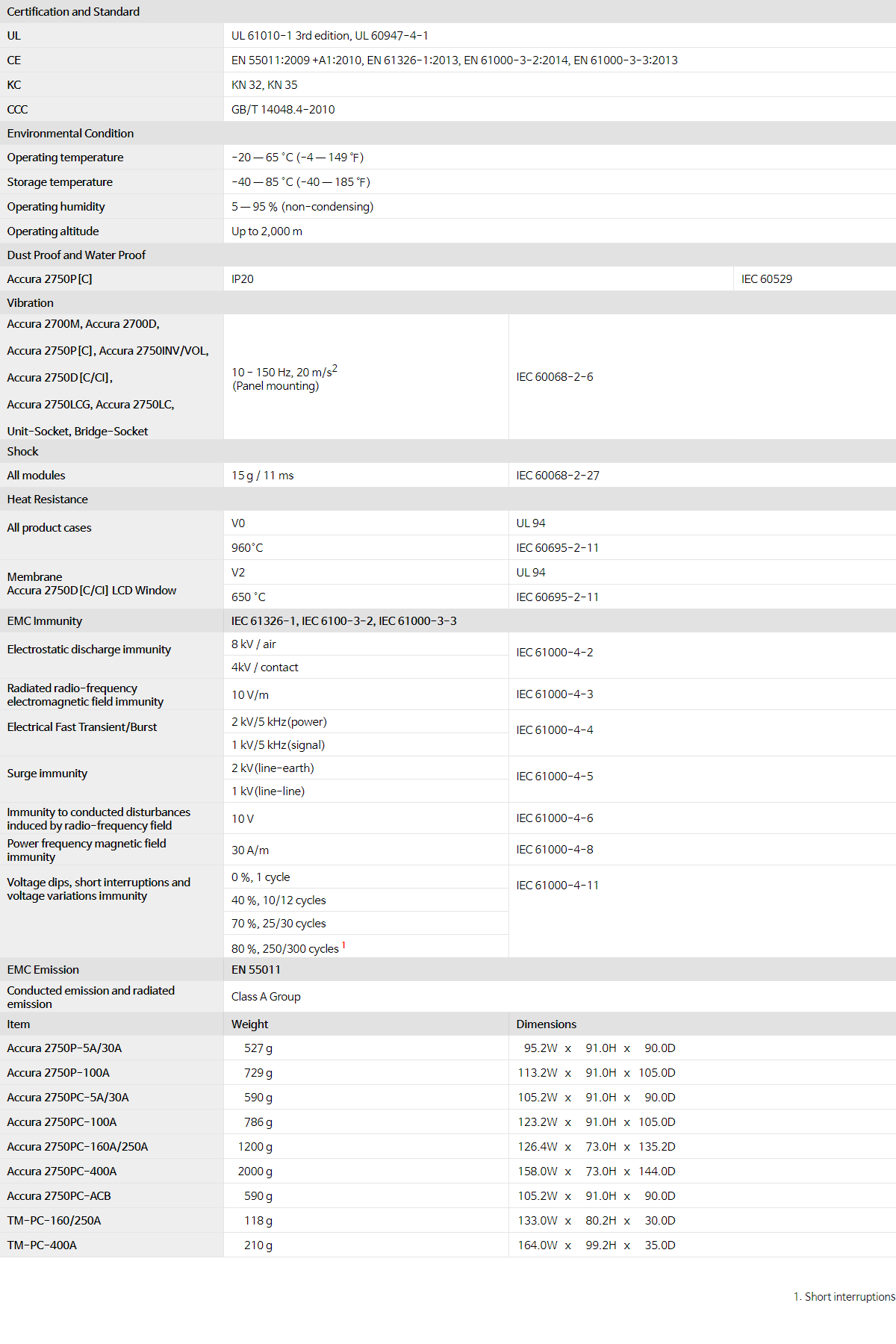

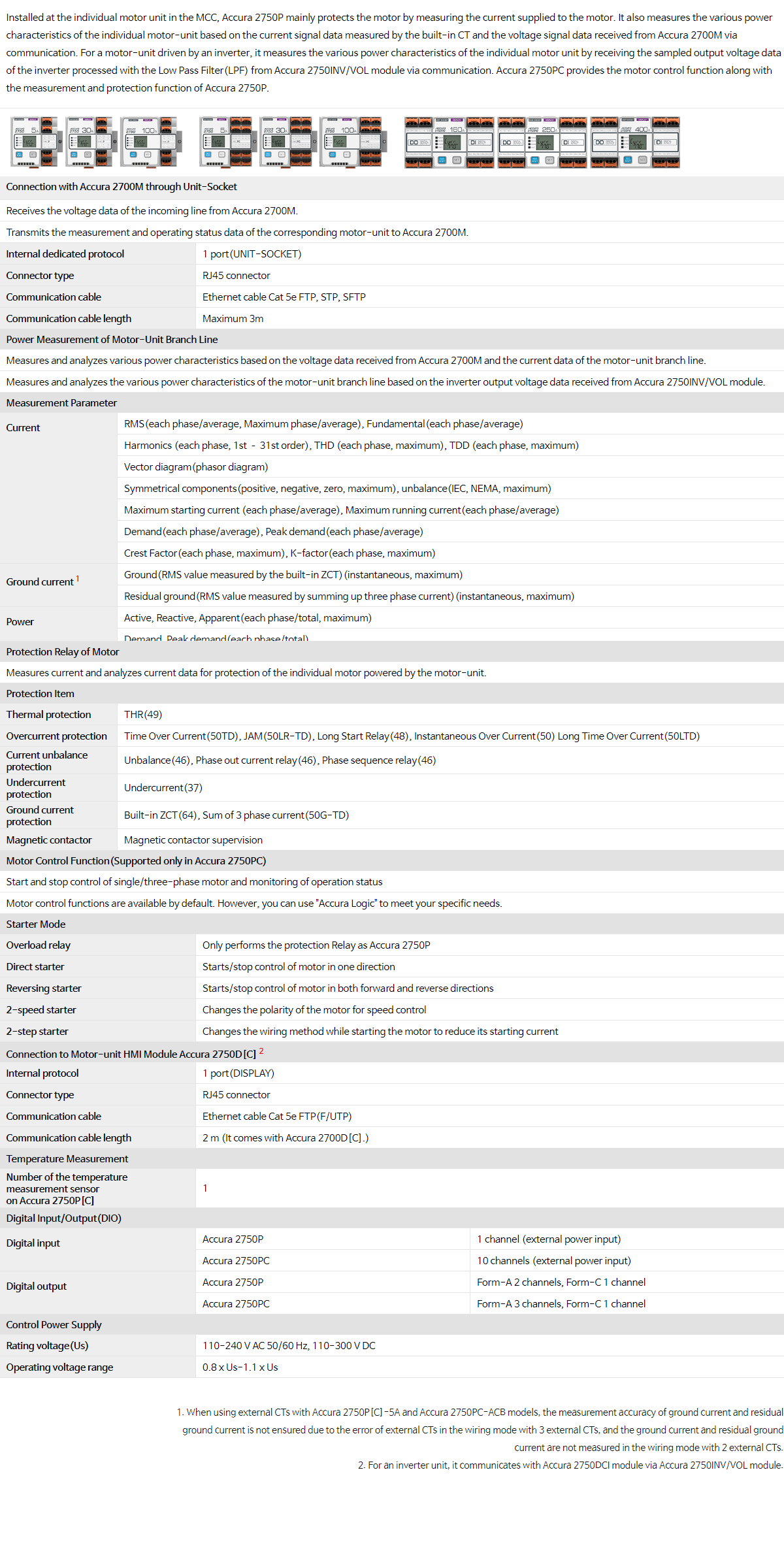

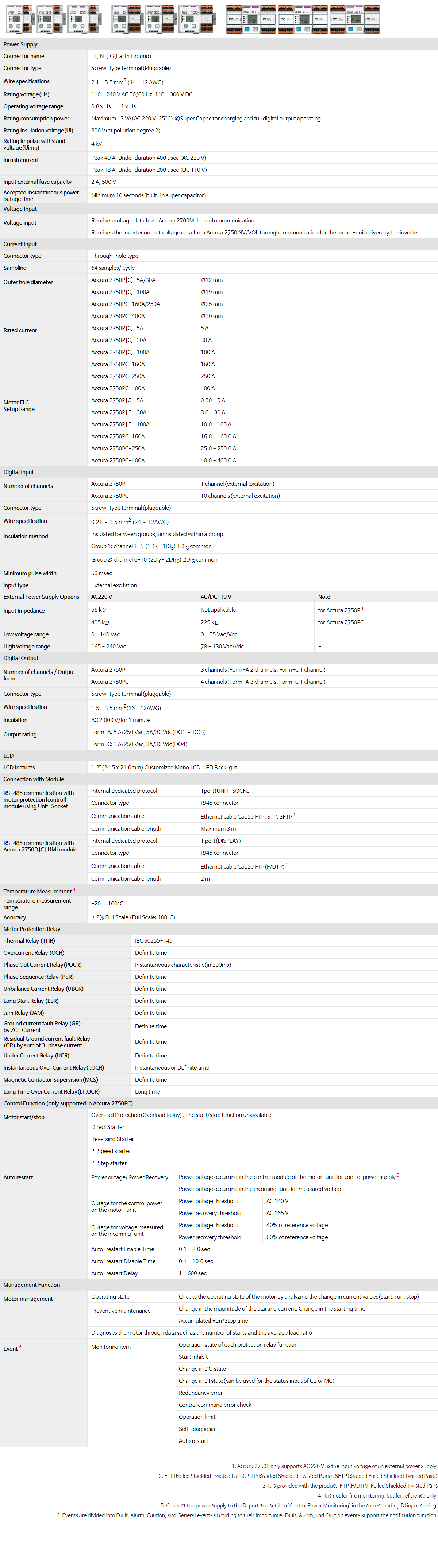

Specifications
FAQ
Download
Features
Specifications
FAQ
Download

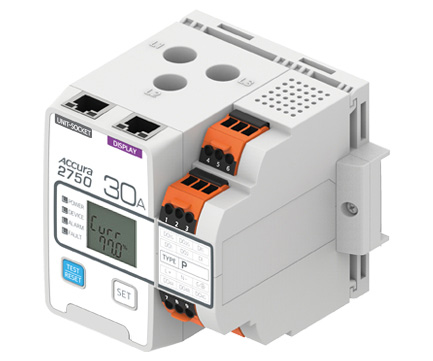

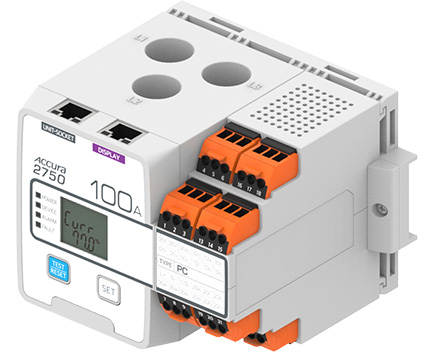

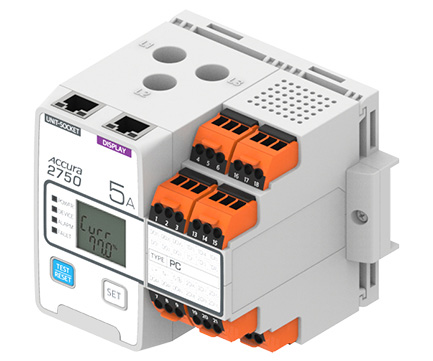

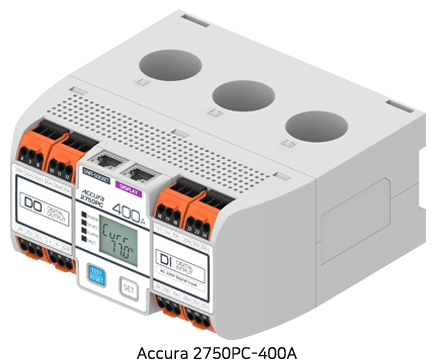

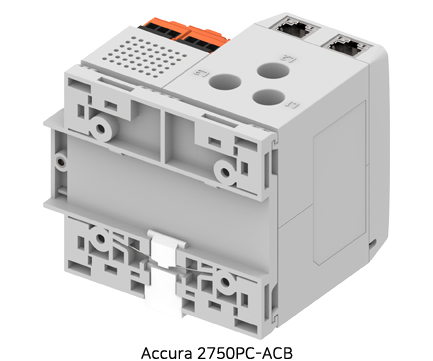

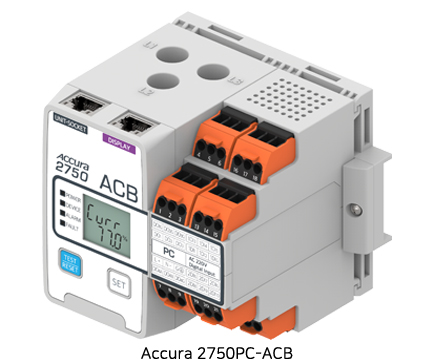

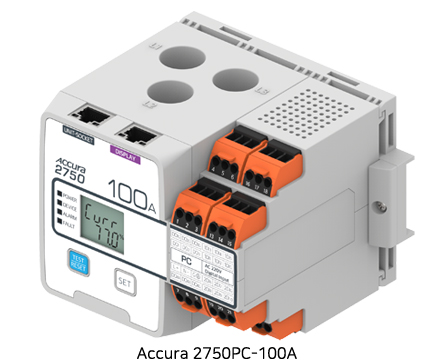

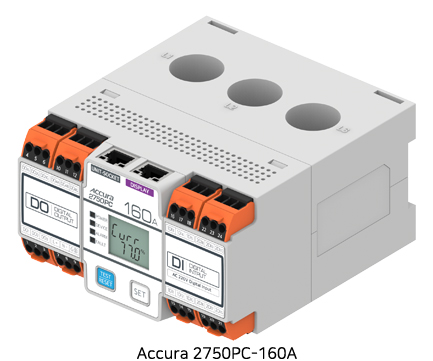

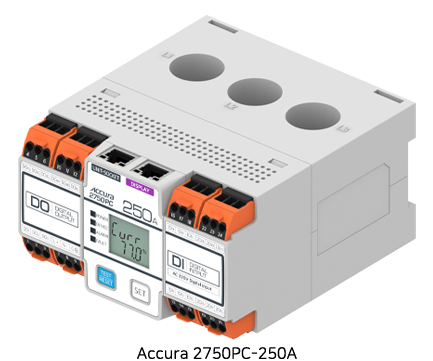

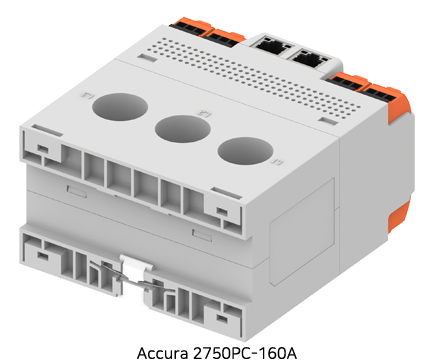

Accura 2750P[C] Motor-Unit Protection[Control] Module

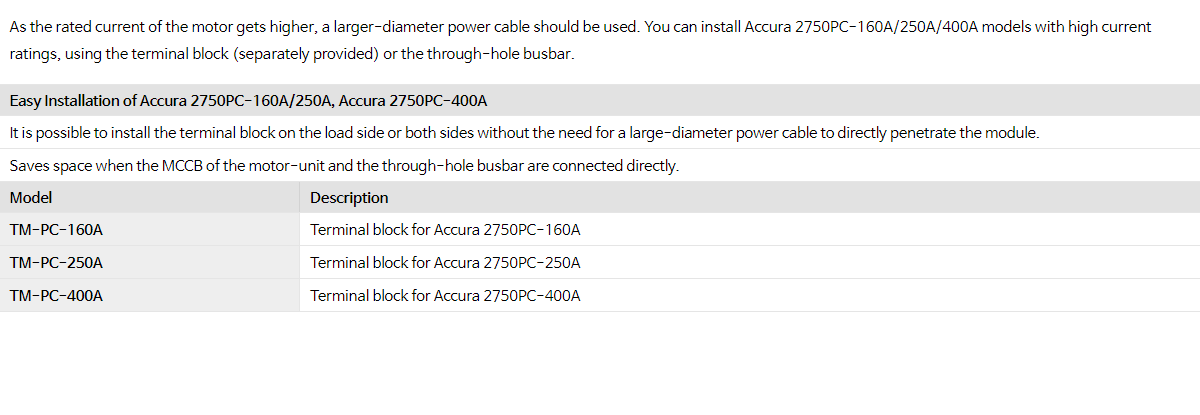

Terminal Block
