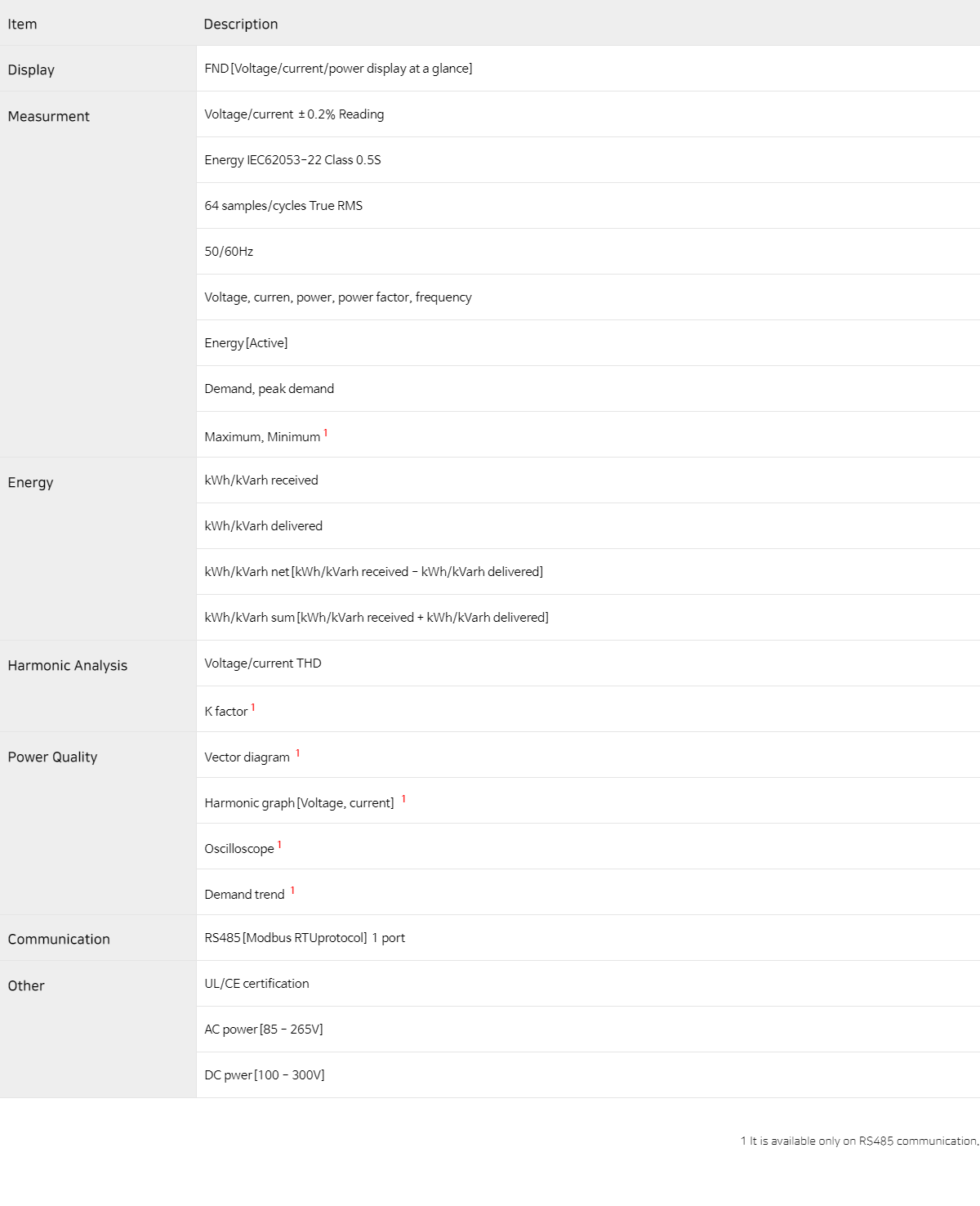

Line to neutral voltage,line to line voltage, current
Active power, reactive power, apparent power, active energy, reactive energy,
apparent energy2,power factor, frequency
Fundamental component of current2
Energy periodically stored in non volatile memory
Energy
Received energy1, delivered energy1
Net energy(received - delivered)
Total(sum) energy(received +delivered
Demand, peak demand
4 quadrant power
Maximum/minimum value
Power Quality
Voltage/current THD
Harmonic analysis2, K-Factor2
Communication
RS-485 port(located on the back of the device)
Modbus RTU protocol
Baud rate: 1,200 - 57,600bps
Power Supply
AC 85 - 265 V, 50/60 Hz
DC 100 - 300 V
Power consumption: 10 VA
1. For the load side, received /delivered energy values are provided as positive values.
2. The data are available only via RS-485 communication.

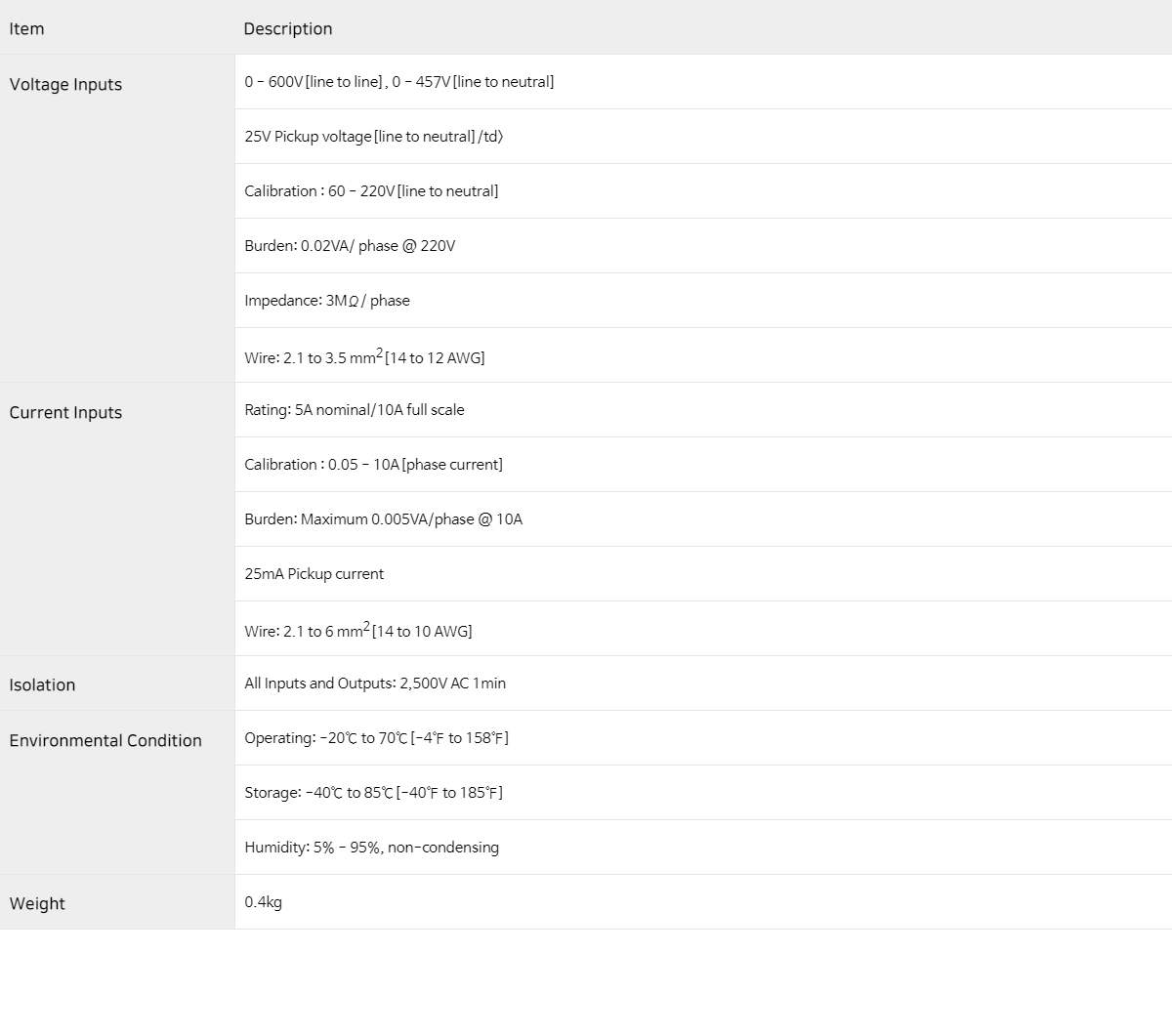

Item
Description
Voltage Input
Rating
0 - 600V 3 ~ L-L, 0 - 457V 3 ~ L-N
Pickup voltage
25 V(L-N)
Calibration
60 - 220 V(L-N)
Burden
0.02 VA/phase @ 220 V
Wiring method
3P4W, 3P3W, 1P3W, 1P2W
Impedance
3 MΩ/phase
Wire specification
2.1 to 3.5 mm2(14 to 12 AWG)
Current Input
Rating
5 A nominal/10 A full scale 3~
Calibration
0.05 - 10 A(phase current)
Burden
Maximum 0.005 VA/phase @ 10 A
Pickup current
20 mA
Wire specification
2.1 to 6.0 mm2(14 to 10 AWG)
Isolation
All inputs and outputs
AC 2,500V for 1 min
Environmental Conditions
Operating temperature
-20 to 70℃(-4℉ to 158℉)
Storage temperature
-40 to 85℃(-40℉ to 185℉)
Operating humidity
5% - 95%, non-condensing
Weight
0.4 kg
