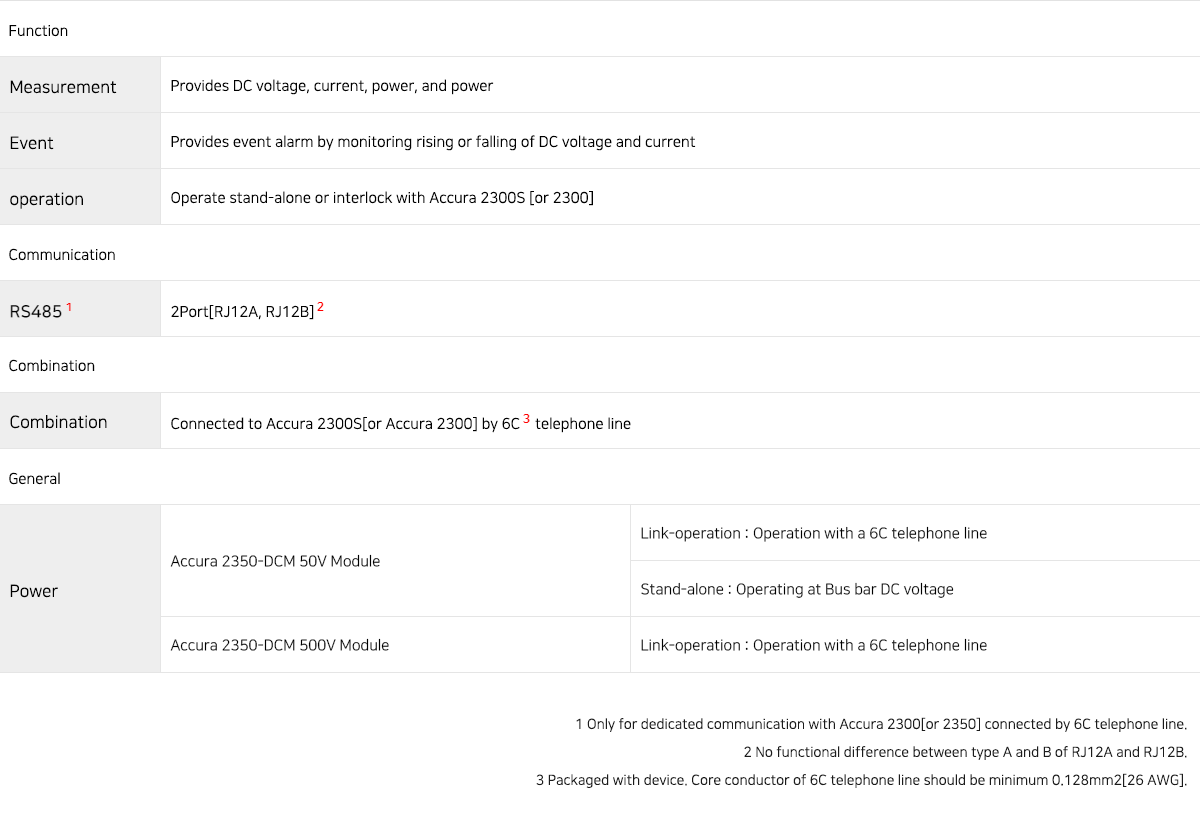

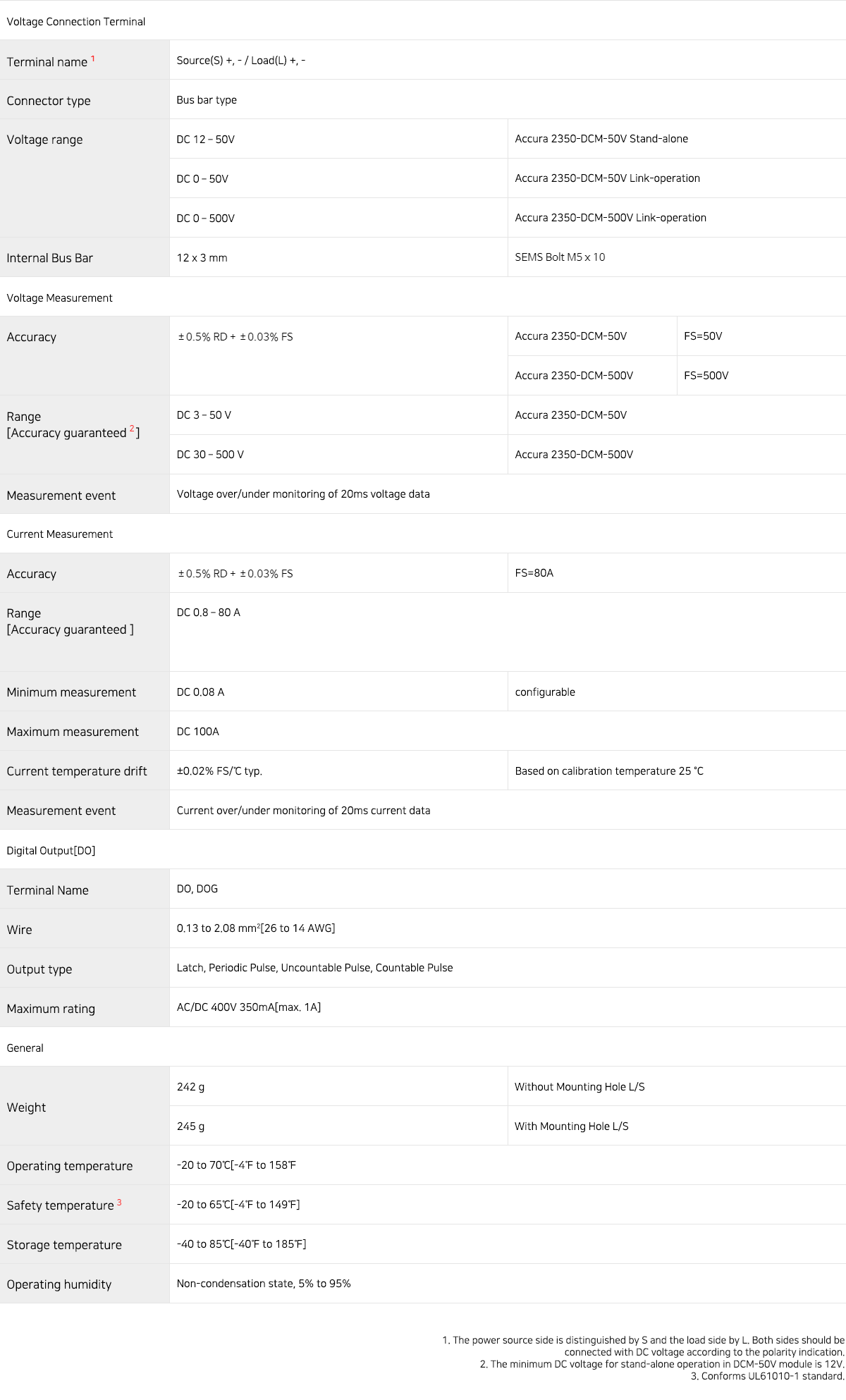

| Voltage Connection Terminal |
| Terminal name1 |
Source(S) +, - / Load(L) +, - |
| Connector type |
Bus bar type |
|
Voltage range
|
DC 12 - 50 V |
Accura 2350-DCM-50V 50V Stand alone |
| DC 0 - 50V |
Accura 2350-DCM-50V 50V Link operation |
| DC 0 - 500V |
Accura 2350-DCM-500V 50V Link operation |
| Internal Bus Bar |
12 x 3 mm |
SEMS Bolt M5 x 10 |
| Control Power |
|
Power
|
Accura 2300[S] RJ12 Communication Line |
| Bus bar2 DC 12 50 V |
Accura 2350 DCM 50V Stand alone |
|
Power consumption
|
125mA @ Accura 2300[S] from RJ12 Communication Line 3 |
| 40mA @ DC 12V Bus bar |
Accura 2350DCM 50V Stand alone |
| 12 mA @ DC 48V Bus bar |
| Voltage Measurement |
| Sampling time |
1ms |
|
Measurement Aggregation
|
20ms aggregation4 from 1ms data |
Aggregation window: 1–32ms (default 20ms) |
| 0.5sec aggregation5 from 20ms data |
|
Accuracy
|
±0.5% Reading + ±0.03% Full scale
|
Accura 2350-DCM-50V |
Full scale:50V |
| Accura 2350-DCM-500V |
Full scale:500V |
|
Range(Accuracy guarantee)6
|
DC 3 - 50 V |
Accura 2350-DCM-50V |
| DC 30 - 500 V |
Accura 2350-DCM-500V |
|
Minimum measurement6,7 |
DC 0.2V |
Accura 2350–DCM–50V |
configurable |
| DC 2V |
Accura 2350–DCM–500V |
configurable |
|
Maximum measurement |
DC 55 V |
Accura 2350–DCM–50V |
| DC 550 V |
Accura 2350–DCM–500V |
| Current Measurement |
| Sampling time |
1ms |
|
Measurement Aggregation
|
20ms aggregation4 from 1ms data |
Aggregation window: 1–32ms ( default 20ms) |
| 0.5sec aggregation5 from 20ms data |
| Accuracy |
±0.5% Reading + ±0.06% Full scale |
Full scale:80A |
| Range(Accuracy guarantee) |
DC 0.8 - 80 A |
| Minimum measurement7 |
DC 0.08 A |
Configurable |
| Maximum measurement |
DC 100 A |
| Current temperature drift8 |
±0.02% Full scale/℃ typ. |
Based on Calibration temperature of 25°C |
| Power / Energy |
| Measurement Aggregation |
0.5sec Power/Energy 5 |
| Accuracy |
±1.0% Reading + 0.15% Full scale |
Based on voltage/current accuracy |
| Event |
| Number of event channel |
5channel(channel 1,2,3,4,5) |
| Event type |
Off / Over9 / Under10Selectable (default Off) |
setup for each channel |
| Monitoring signal |
Voltage / Current Selectable |
setup for each channel |
| Digital Output Link–operation |
DO activation Disable / Enable |
setup for each channel |
| Time resolution |
20ms |
20ms aggregation data 4 of voltage and current |
|
Event data
|
Duration time, Max/Min |
Stored in non volatile memory |
| 1.5sec Waveform (20ms resolution) |
Stored in volatile memory |
| Digital Output[DO] |
| Terminal Name |
DO, DOG |
Connector Type |
Screw type terminal |
| Wire |
0.13 to 2.08 mm2[26 to 14 AWG] |
|
Output type11
|
Latch, Periodic Pulse, |
| Uncountable Pulse, Countable Pulse12 |
| Min. Pulse Period |
0.2 sec |
| Min. Pulse On–time |
0.1 sec |
| Isolation |
AC 2,000V for 1 minute |
| Maximum rating |
AC/DC 400V 350mA[max. 1A] |
| General |
|
Weight
|
242 g |
Except mounting hole L/S |
| 245 g |
With mounting hole L/S |
| Operating temperature |
-20 to 70℃[-4℉ to 158℉] |
| Safety temperature13 |
-20 to 65℃[-4℉ to 149℉] |
| Storage temperature |
-40 to 85℃[-40℉ to 185℉] |
| Operating humidity |
No condensation, 5% to 95% |
1. The power source side is distinguished by S and the load side by L. Both sides should be connected with DC voltage
according to the polarity indication. When the polarity is reversed, voltage and current are measured as negative values.
2. DCM–50V module is supplied with control power by bus bar DC voltage in case of stand alone operation.
3. Number of DCM modu les that can be connected to Accura 2300[S] is limited to 10 modules 5 modules for each RJ12 port
4. Over/Under event is detected by monitoring 20ms voltage current aggregation data.
5. Aggregation data over 1 second is also provided. Refer to the aggre gation section of Accura 2300 S User Guide for details.
6. The minimum DC voltage for stand alone operation in DCM 50V module is 12V.
7. The measured value below the configured minimum measurement is treated as zero.
8. Current measurement values may cont ain errors as the temperature varies
9. Over event occurs when the measured value exceeds threshold 1 by time delay.
10. Under event occurs when the measured value exceeds t hreshold 1 and is above or equal to th reshold 2 by time delay
11. The operation for digital output type is as follows.
12. A pulse is defined as pulse period and pulse on time.
13. Conforms UL61010 1 standard.
