TGS813 for detecting combustible gas[Tin dioxide(SnO2) Semiconductor]
High sensitivity to various combustible gases
High sensitivity to methane, propane, and butane
Over event is generated when gas concentration rises higher than threshold value
LED blinks when an event is generated
Download Catalog

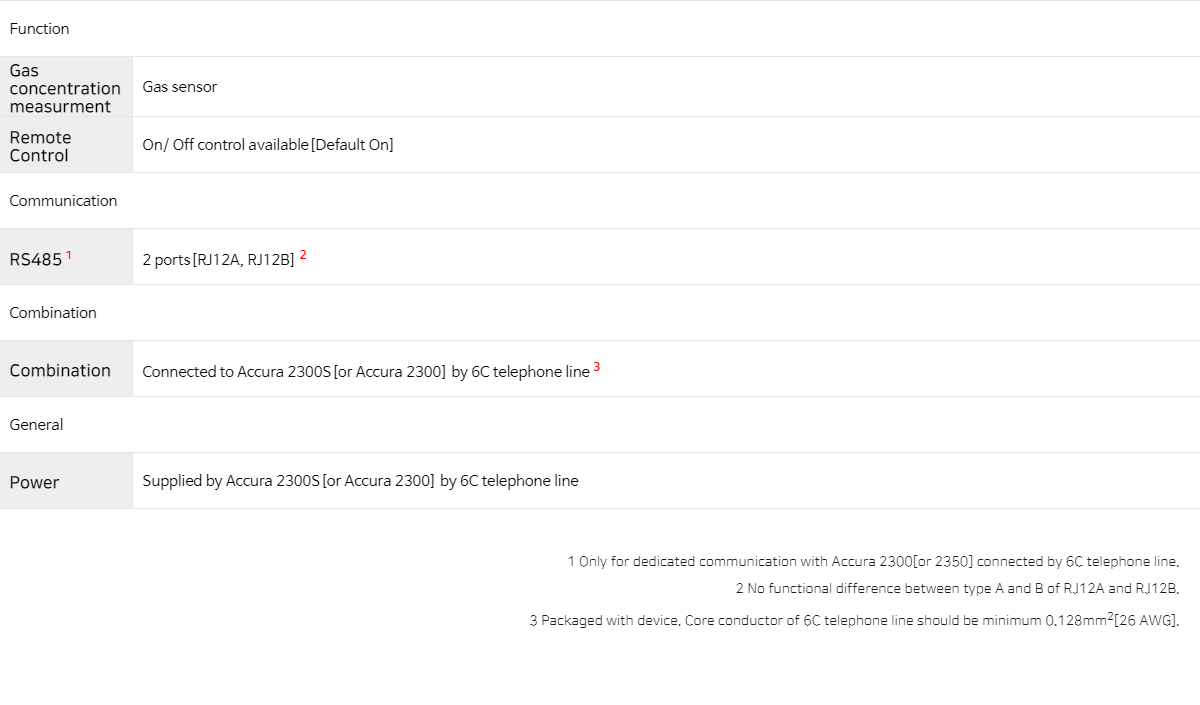

Function
Gas concentration measurment
Gas sensor
Remote Control
On/ Off control available[Default On]
Communication
RS4851
2 ports[RJ12A, RJ12B]2
Combination
Combination
Connected to Accura 2300S[or Accura 2300] through 6C telephone line3
General
Power
Supplied by Accura 2300S[or Accura 2300] through 6C telephone line
1 Only for dedicated communication with Accura 2300[or 2350] connected by 6C telephone line.
2 No functional difference between type A and B of RJ12A and RJ12B.
3 Packaged with device. Core conductor of 6C telephone line should be minimum 0.128mm2[26 AWG].

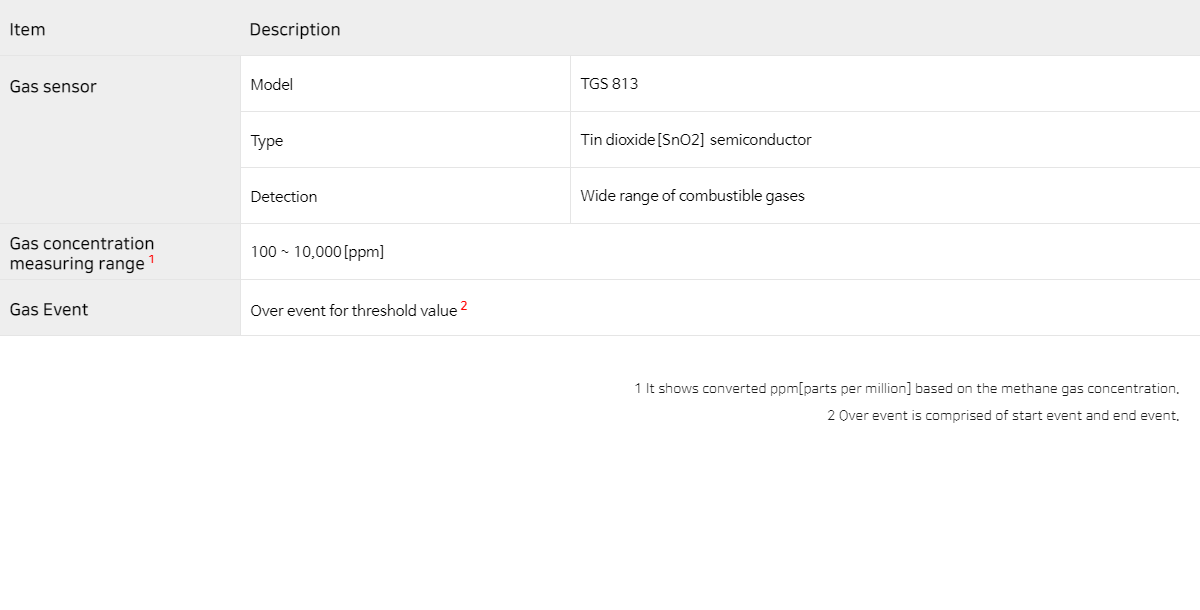

Gas measurement
Gas measurement
Item
Description
Gas sensor
Model
TGS 813
Type
Tin dioxide[SnO2] semiconductor
Detection
Wide range of combustible gases
Gas concentration measuring range1
100 ~ 10,000[ppm]
Gas Event
Over event for threshold value2
1 It shows converted ppm[parts per million] based on the methane gas concentration.
2 Over event is comprised of start event and end event.

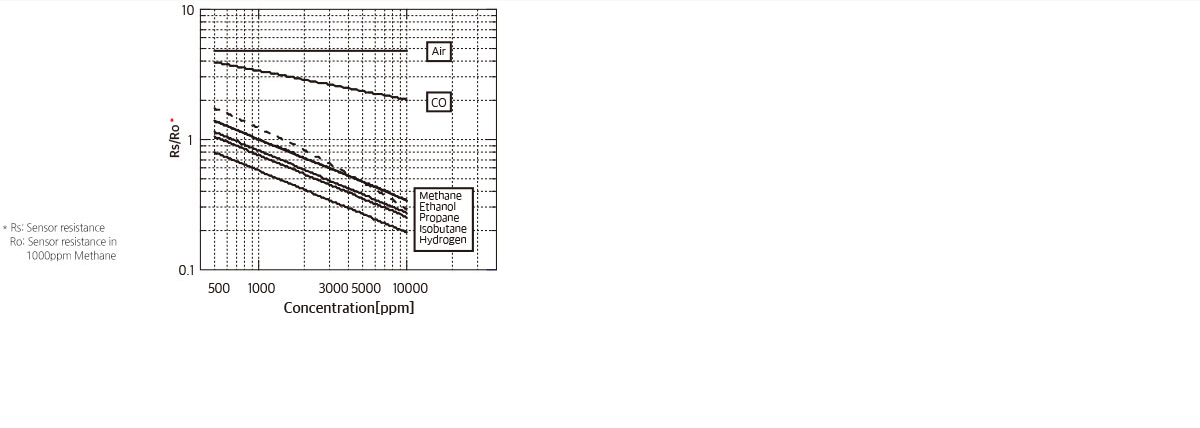

Sensitivity Characteristics
Sensitivity Characteristics

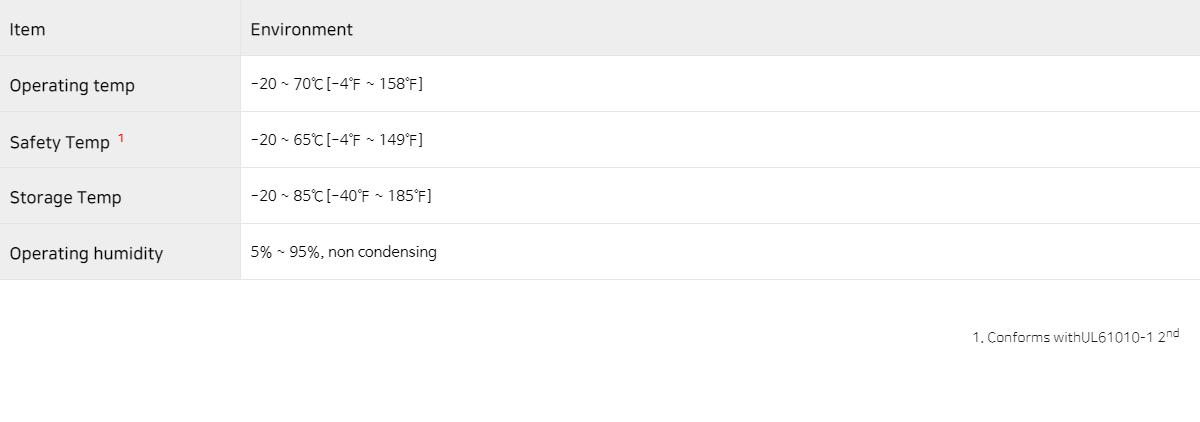

Temperature
Temperature
Item
Environment
Operating temp
-20 ~ 70¡É[-4¢µ ~ 158¢µ]
Safety Temp 1
-20 ~ 65¡É[-4¢µ ~ 149¢µ]
Storage Temp
-20 ~ 85¡É[-40¢µ ~ 185¢µ]
Operating humidity
5% ~ 95%, non condensing
1. Conforms withUL61010-1 2nd
