Gas sensor: for detecting TGS813 gas[Tin dioxide(SnO2) Semiconductor]
High sensitivity to various combustible gases
High sensitivity to methane, propane, and butane
Event is generated when gas concentration rises higher than threshold value
DO[Digital output] outputs and LED blinks when an event is generated
Download Catalog

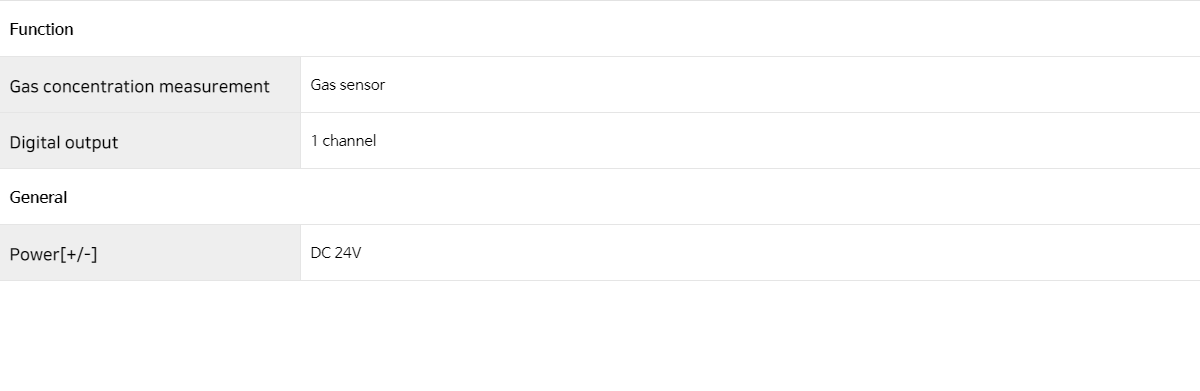

Function
Gas concentration measurement
Gas sensor
Digital output
1 channel
General
Power[+/-]
DC 24V

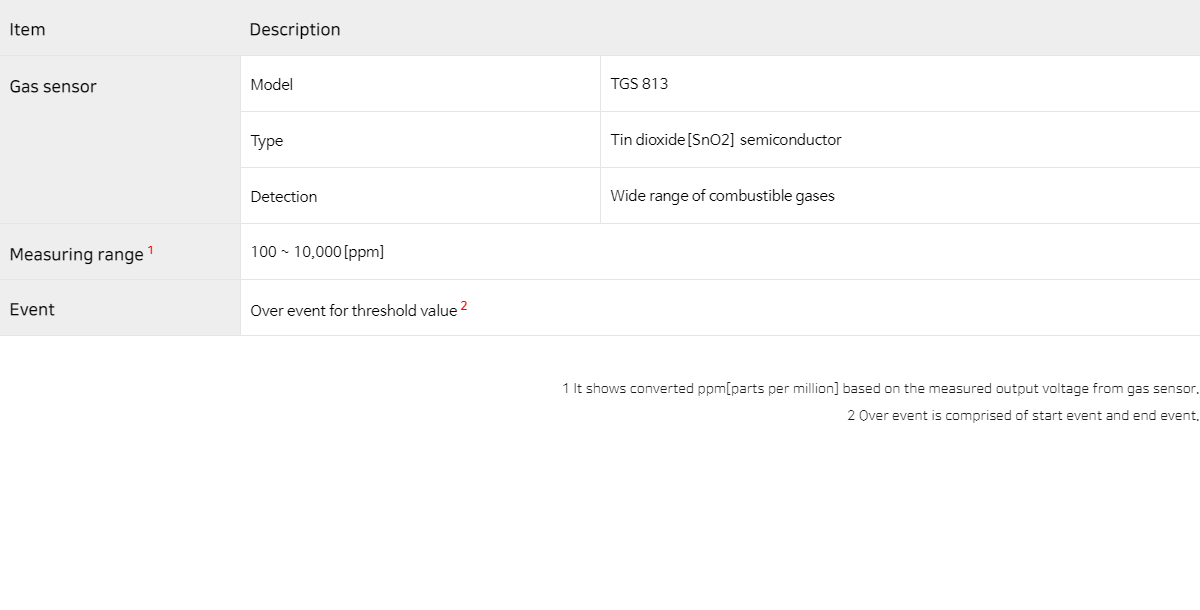

Gas measurement
Gas measurement
Item
Description
Gas sensor
Model
TGS 813
Type
Tin dioxide[SnO2] semiconductor
Detection
Wide range of combustible gases
Measuring range1
100 ~ 10,000[ppm]
Event
Over event for threshold value2
1 It shows converted ppm[parts per million] based on the measured output voltage from gas sensor.
2 Over event is comprised of start event and end event.

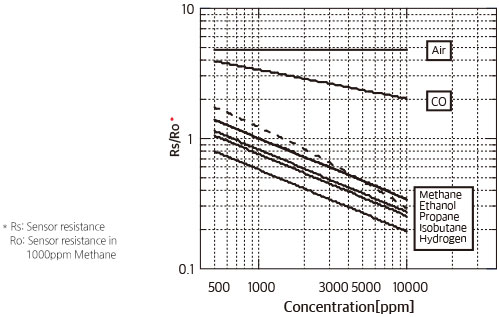

Sensitivity Characteristics

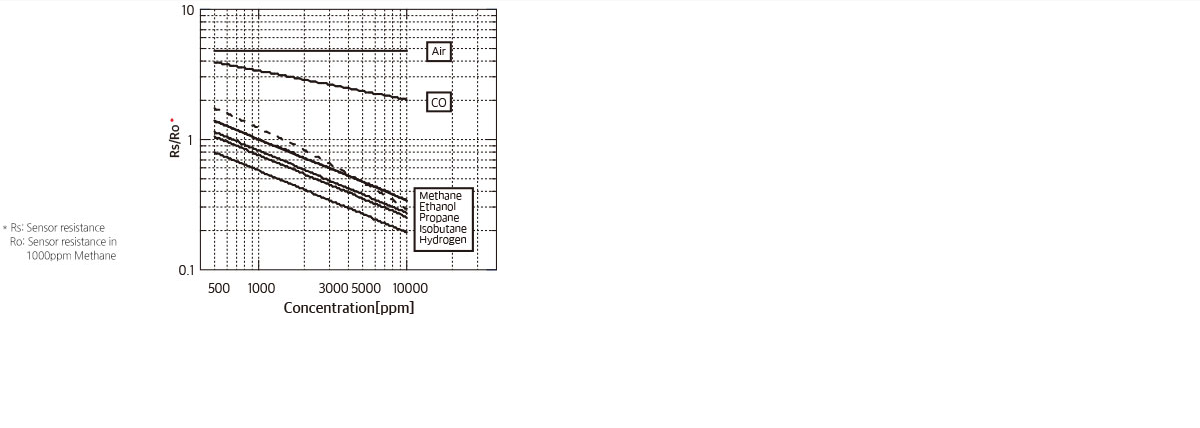

Sensitivity Characteristics

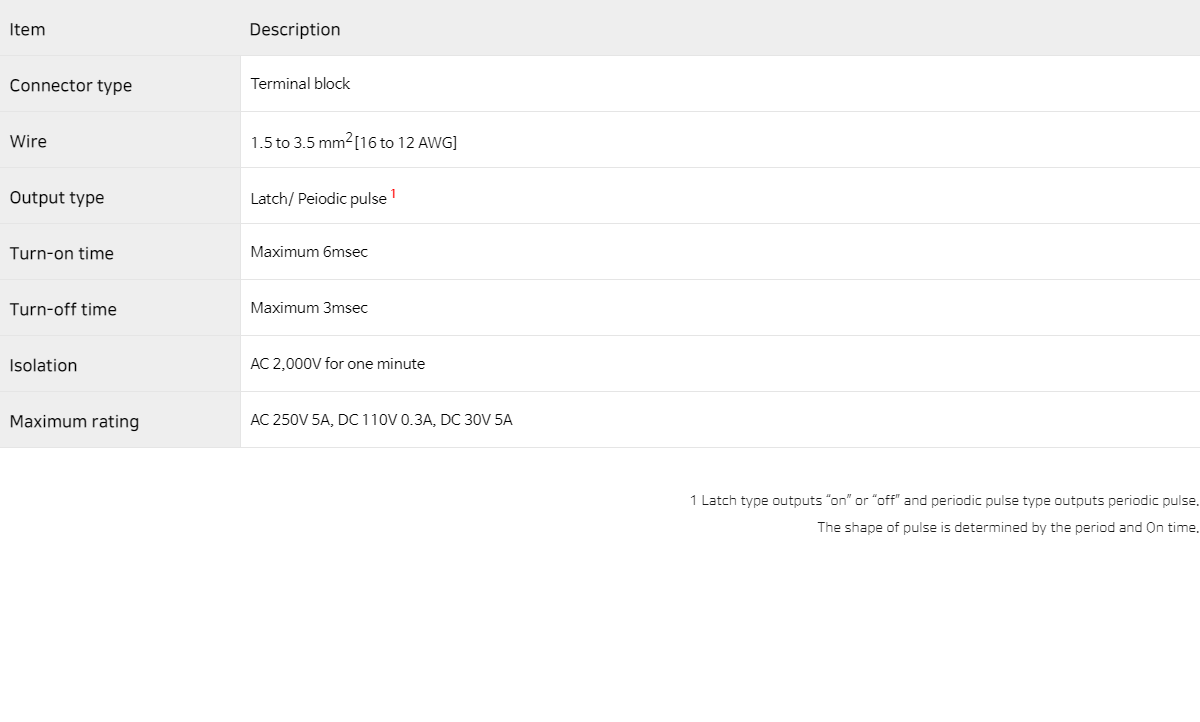

Digital output
Digital output
Item
Description
Connector type
Terminal block
Wire
1.5 to 3.5 mm2[16 to 12 AWG]
Output type
Latch/ Peiodic pulse1
Turn-on time
Maximum 6msec
Turn-off time
Maximum 3msec
Isolation
AC 2,000V for one minute
Maximum rating
AC 250V 5A, DC 110V 0.3A, DC 30V 5A
1 Latch type outputs “on” or “off” and periodic pulse type outputs periodic pulse.
The shape of pulse is determined by the period and On time.

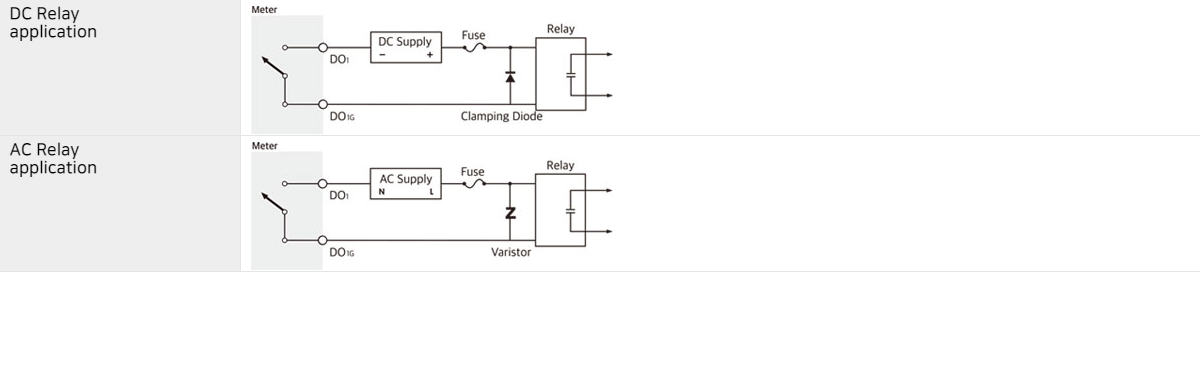

Application
Application

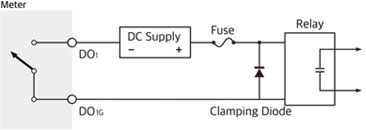

DC Relay application

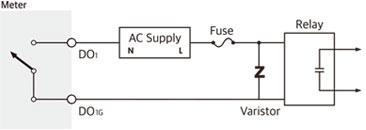

AC Relay application

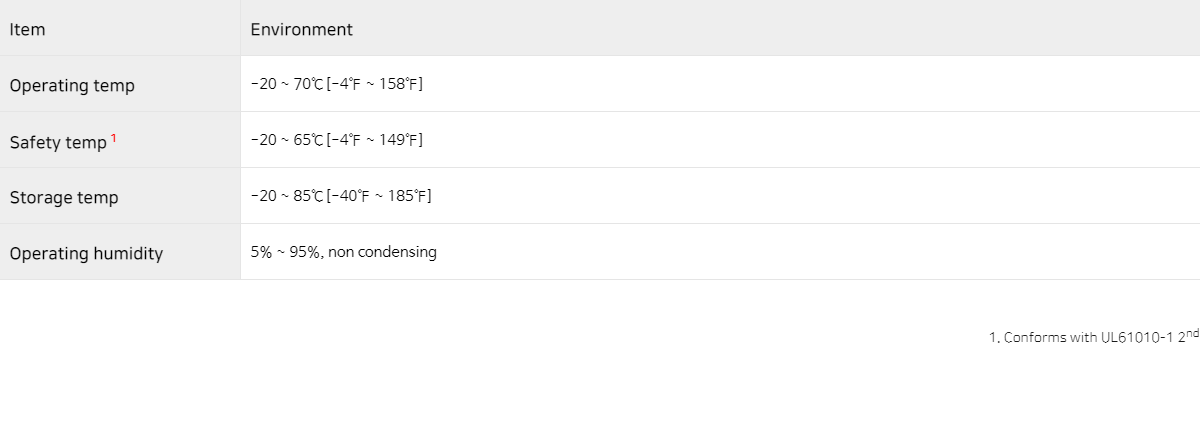

Temperature
Temperature
Item
Environment
Operating temp
-20 ~ 70℃[-4℉ ~ 158℉]
Safety temp1
-20 ~ 65℃[-4℉ ~ 149℉]
Storage temp
-20 ~ 85℃[-40℉ ~ 185℉]
Operating humidity
5% ~ 95%, non condensing
1. Conforms with UL61010-1 2nd
