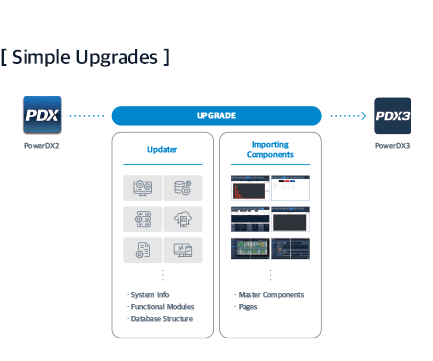

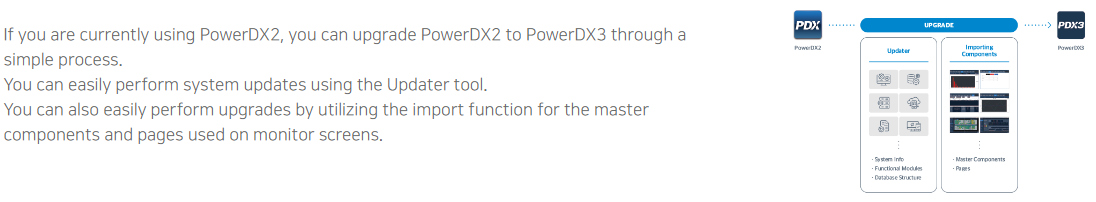

Simple Upgrades

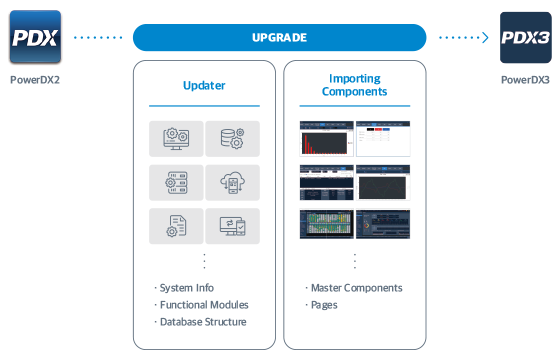

If you are currently using PowerDX2, you can upgrade PowerDX2 to PowerDX3 through a simple process.

You can easily perform system updates using the Updater tool.

You can also easily perform upgrades by utilizing the import function for the master components and pages used on monitor screens.

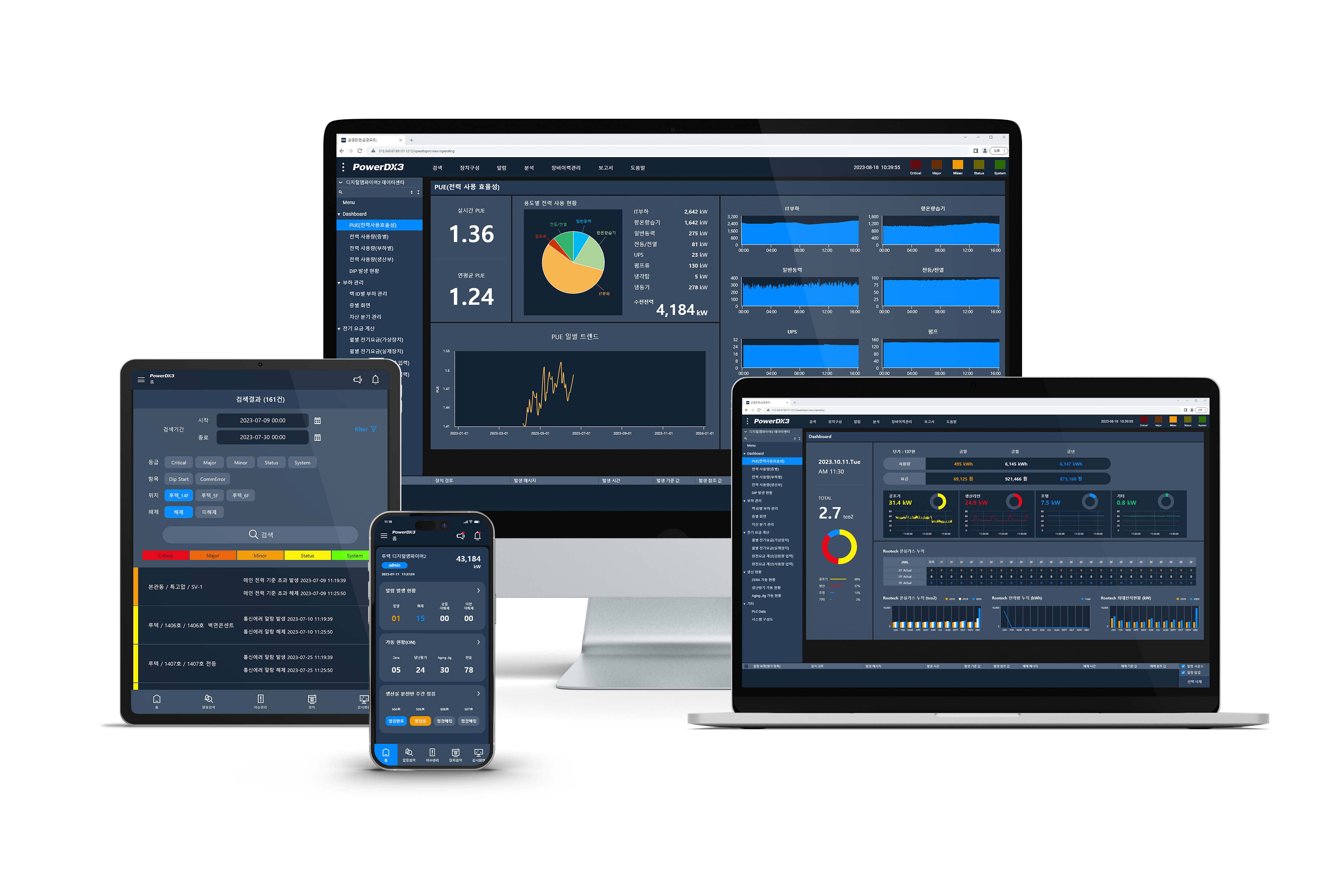

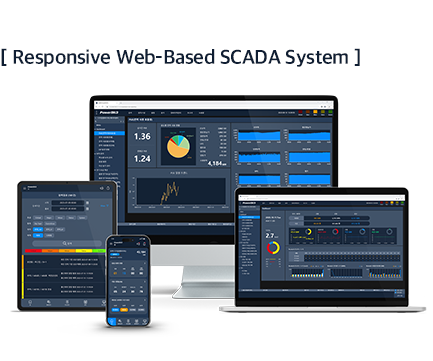

Responsive Web-Based SCADA System

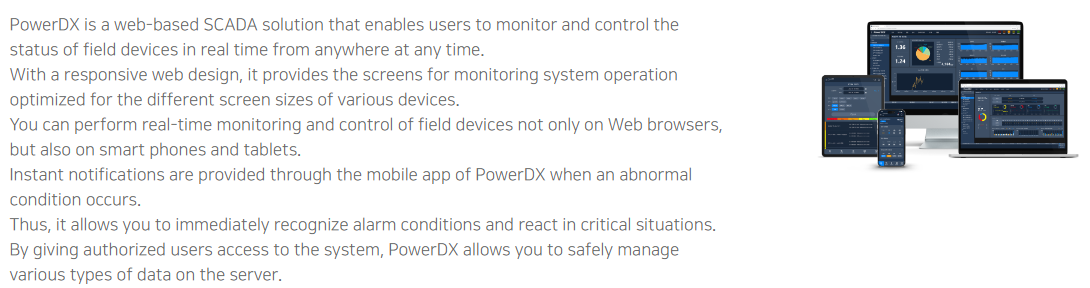

PowerDX is a web-based SCADA solution that enables users to monitor and control the status of field devices in real time from anywhere at any time.

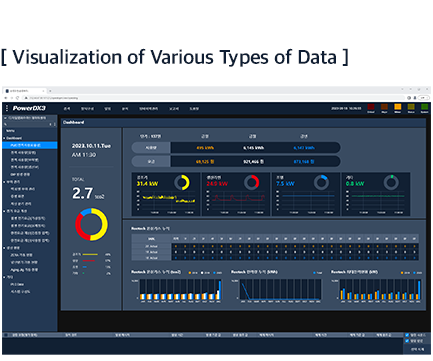

With a responsive web design, it provides the screens for monitoring system operation

optimized for the different screen sizes of various devices.

You can perform real-time monitoring and control of field devices not only on Web browsers, but also on smart phones and tablets.

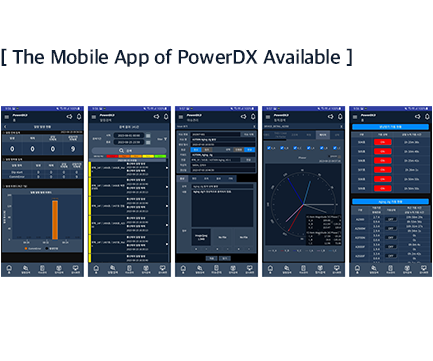

Instant notifications are provided through the mobile app of PowerDX when an abnormal condition occurs.

Thus, it allows you to immediately recognize alarm conditions and react in critical situations.

By giving authorized users access to the system, PowerDX allows you to safely manage various types of data on the server.

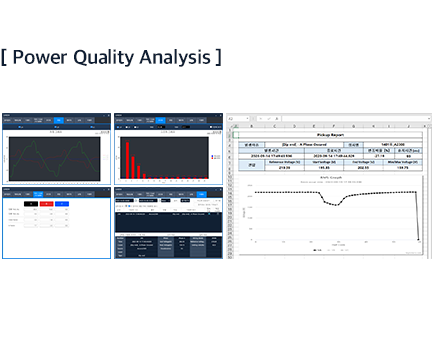

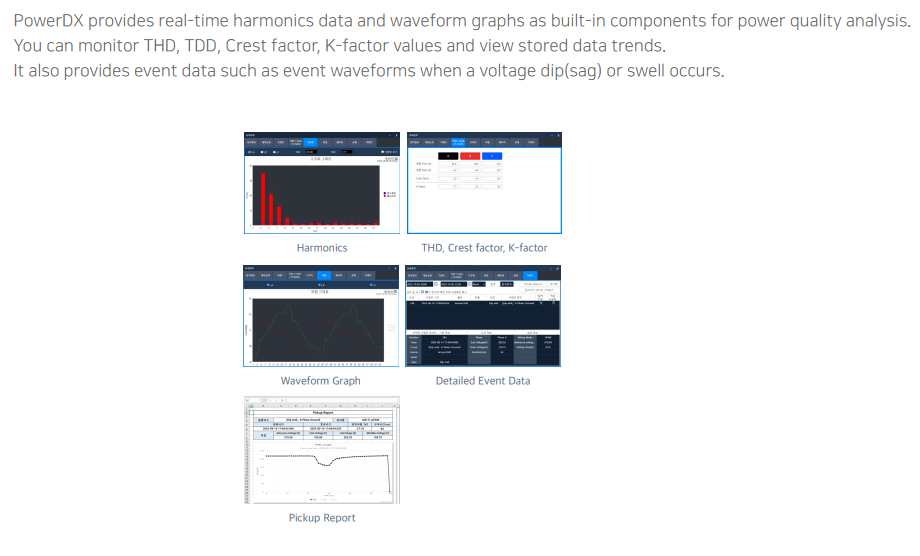

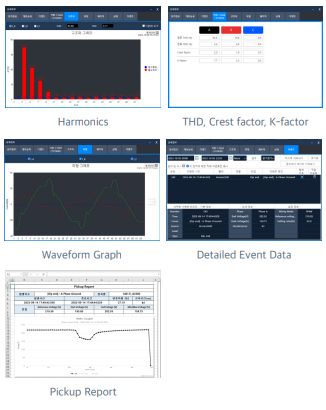

Power Quality Analysis[Accura Products]

PowerDX provides real-time harmonics data and waveform graphs as built-in components for power quality analysis.

You can monitor THD, TDD, Crest factor, K-factor values and view stored data trends.

It also provides event data such as event waveforms when a voltage dip(sag) or swell occurs.

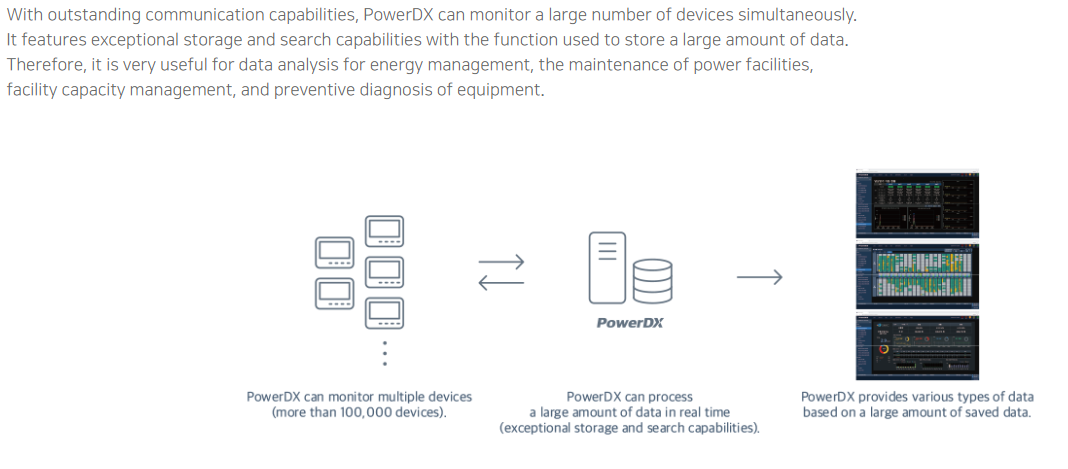

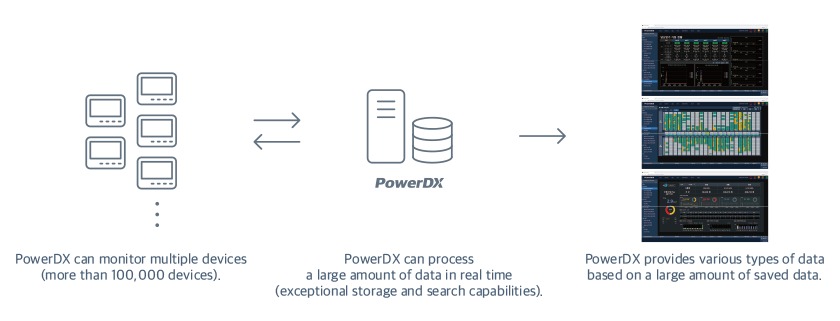

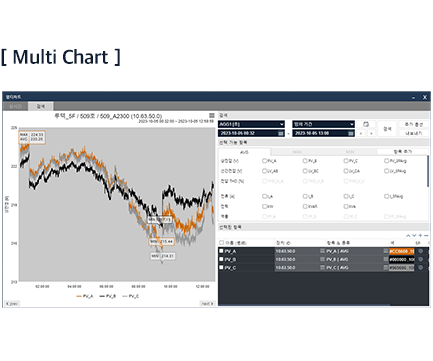

Big Data Processing

With outstanding communication capabilities, PowerDX can monitor a large number of devices simultaneously.

It features exceptional storage and search capabilities with the function used to store a large amount of data.

Therefore, it is very useful for data analysis for energy management, the maintenance of power facilities,

facility capacity management, and preventive diagnosis of equipment.

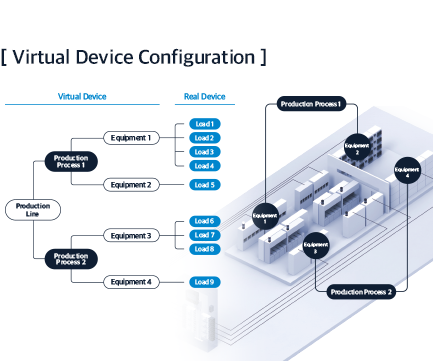

Virtual Device Configuration

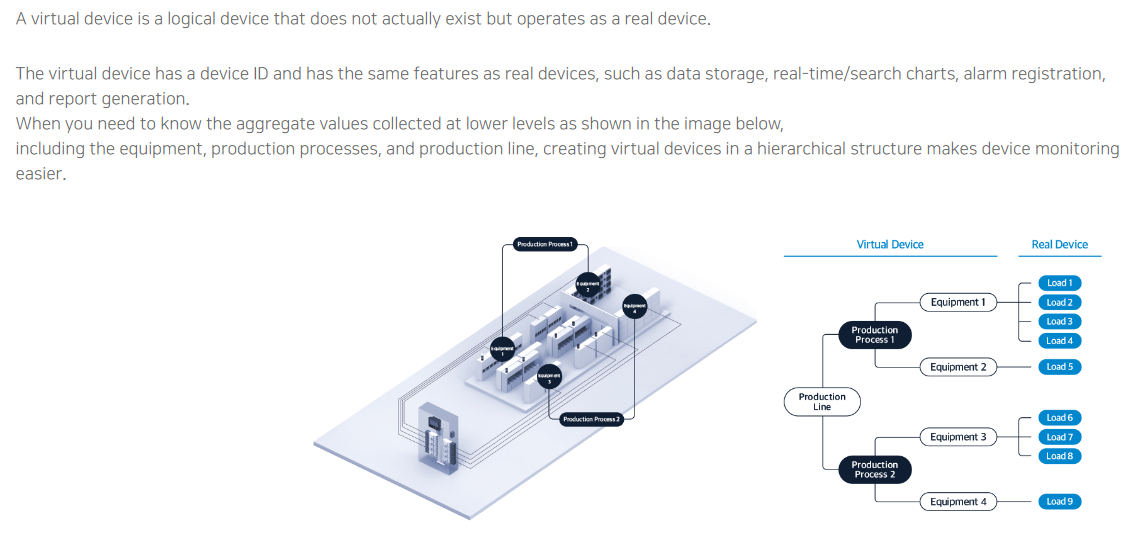

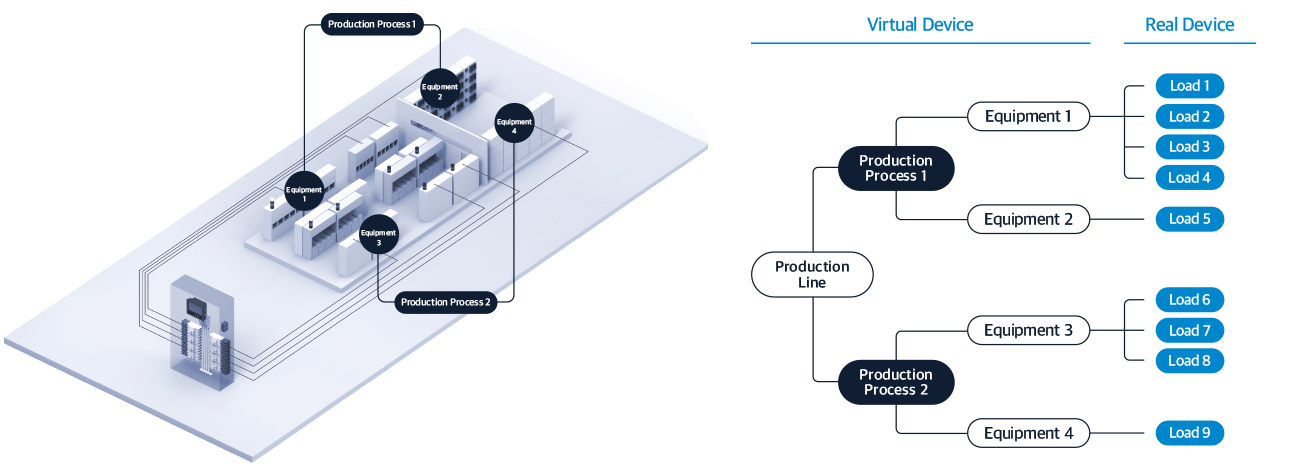

A virtual device is a logical device that does not actually exist but operates as a real device.

The virtual device has a device ID and has the same features as real devices, such as data storage, real-time/search charts, alarm registration, and report generation.

When you need to know the aggregate values collected at lower levels as shown in the image below,

including the equipment, production processes, and production line, creating virtual devices in a hierarchical structure makes device monitoring easier.

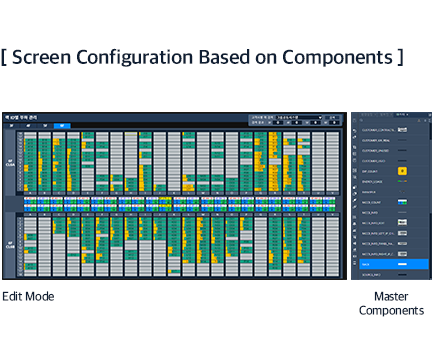

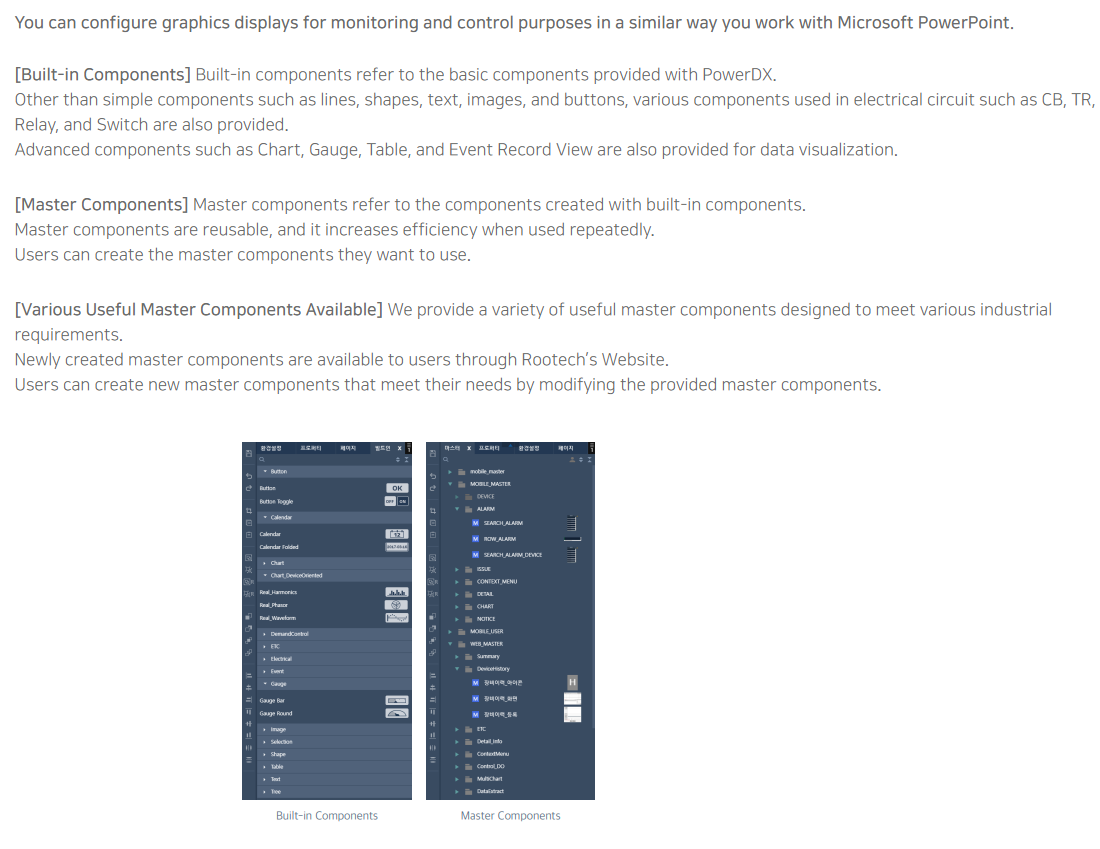

Screen Configuration Based on Components

You can configure graphics displays for monitoring and control purposes in a similar way you work with Microsoft PowerPoint.

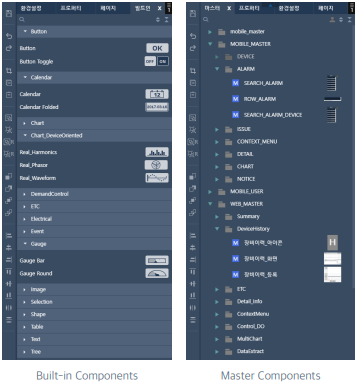

[Built-in Components] Built-in components refer to the basic components provided with PowerDX.

Other than simple components such as lines, shapes, text, images, and buttons, various components used in electrical circuit such as CB, TR, Relay, and Switch are also provided.

Advanced components such as Chart, Gauge, Table, and Event Record View are also provided for data visualization.

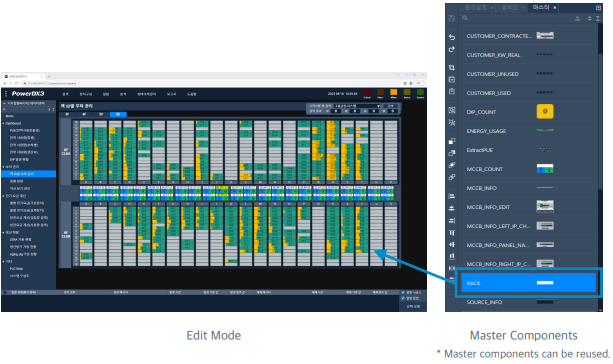

[Master Components] Master components refer to the components created with built-in components.

Master components are reusable, and it increases efficiency when used repeatedly.

Users can create the master components they want to use.

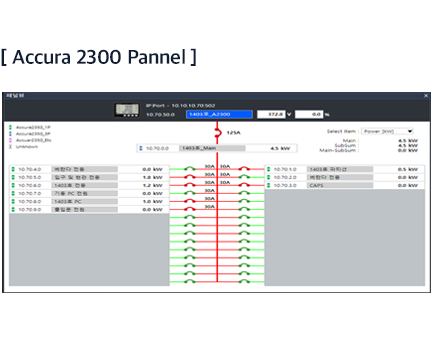

[Various Useful Master Components Available] We provide a variety of useful master components designed to meet various industrial requirements.

Newly created master components are available to users through Rootech’s Website.

Users can create new master components that meet their needs by modifying the provided master components.

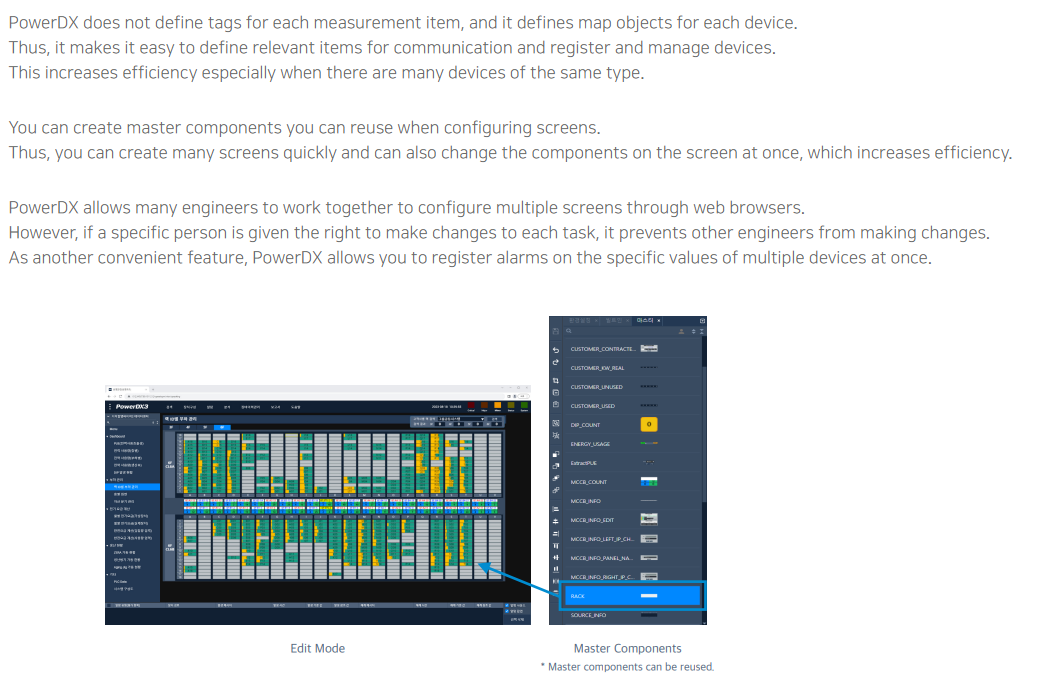

High Efficiency

PowerDX does not define tags for each measurement item, and it defines map objects for each device.

Thus, it makes it easy to define relevant items for communication and register and manage devices.

This increases efficiency especially when there are many devices of the same type.

You can create master components you can reuse when configuring screens.

Thus, you can create many screens quickly and can also change the components on the screen at once, which increases efficiency.

PowerDX allows many engineers to work together to configure multiple screens through web browsers.

However, if a specific person is given the right to make changes to each task, it prevents other engineers from making changes.

As another convenient feature, PowerDX allows you to register alarms on the specific values of multiple devices at once.

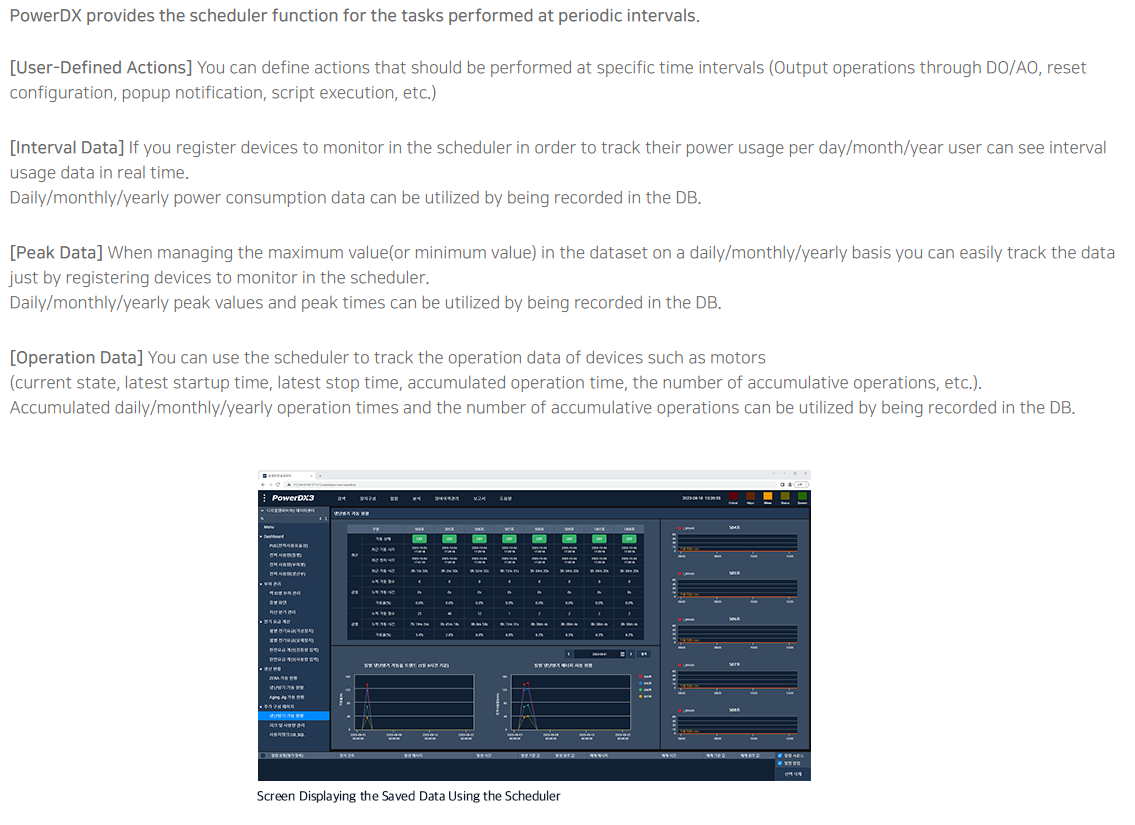

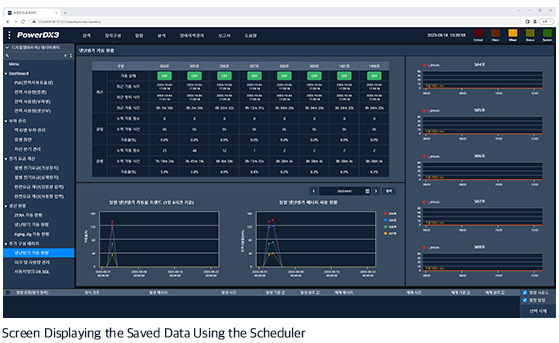

Various Schedulers Available

PowerDX provides the scheduler function for the tasks performed at periodic intervals.

[User-Defined Actions] You can define actions that should be performed at specific time intervals (Output operations through DO/AO, reset configuration, popup notification, script execution, etc.)

[Interval Data] If you register devices to monitor in the scheduler in order to track their power usage per day/month/year user can see interval usage data in real time.

Daily/monthly/yearly power consumption data can be utilized by being recorded in the DB.

[Peak Data] When managing the maximum value(or minimum value) in the dataset on a daily/monthly/yearly basis you can easily track the data just by registering devices to monitor in the scheduler.

Daily/monthly/yearly peak values and peak times can be utilized by being recorded in the DB.

[Operation Data] You can use the scheduler to track the operation data of devices such as motors

(current state, latest startup time, latest stop time, accumulated operation time, the number of accumulative operations, etc.).

Accumulated daily/monthly/yearly operation times and the number of accumulative operations can be utilized by being recorded in the DB.

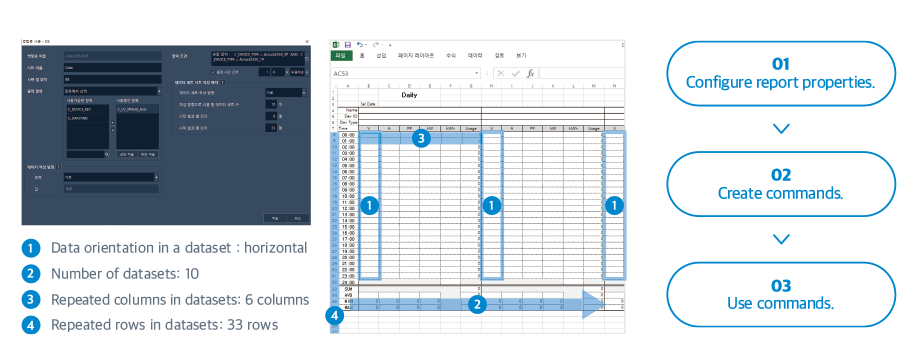

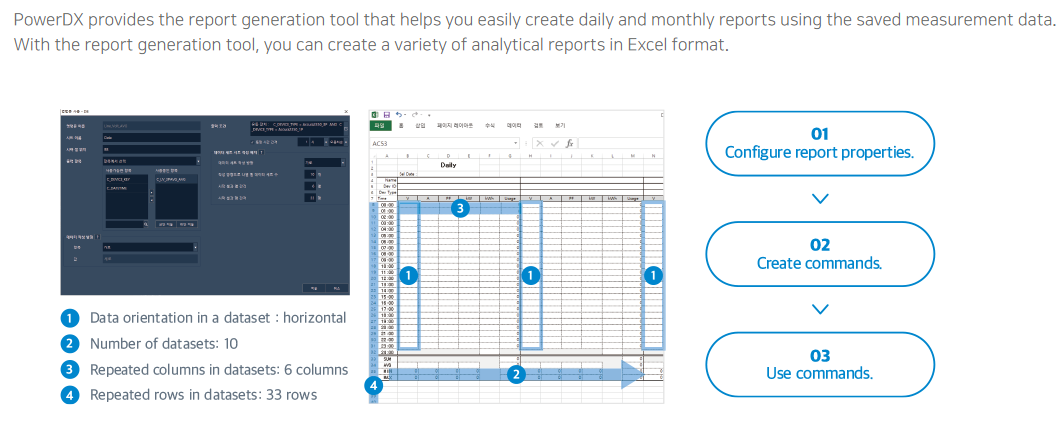

Report Generation Tool Available

PowerDX provides the report generation tool that helps you easily create daily and monthly reports using the saved measurement data.

With the report generation tool, you can create a variety of analytical reports in Excel format.

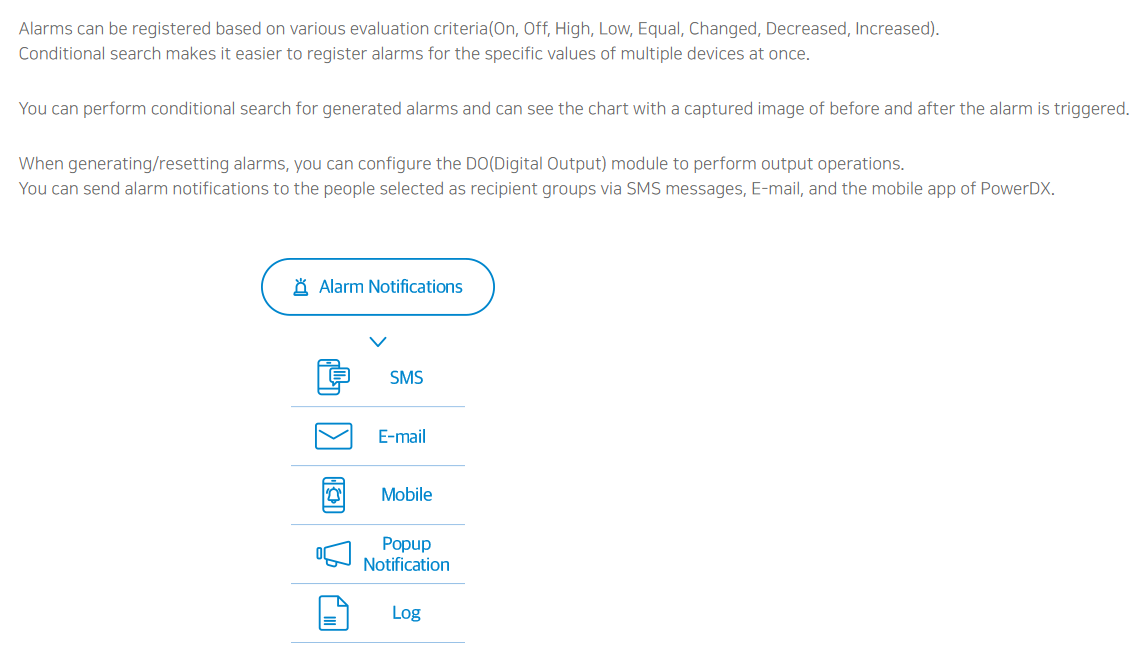

Alarm Registration / Alarm Notifications

Alarms can be registered based on various evaluation criteria(On, Off, High, Low, Equal, Changed, Decreased, Increased).

Conditional search makes it easier to register alarms for the specific values of multiple devices at once.

You can perform conditional search for generated alarms and can see the chart with a captured image of before and after the alarm is triggered.

When generating/resetting alarms, you can configure the DO(Digital Output) module to perform output operations.

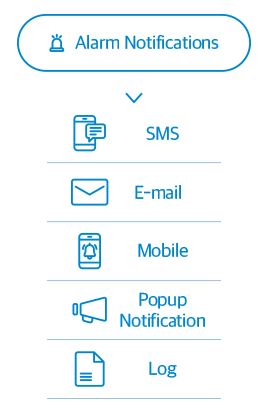

You can send alarm notifications to the people selected as recipient groups via SMS messages, E-mail, and the mobile app of PowerDX.

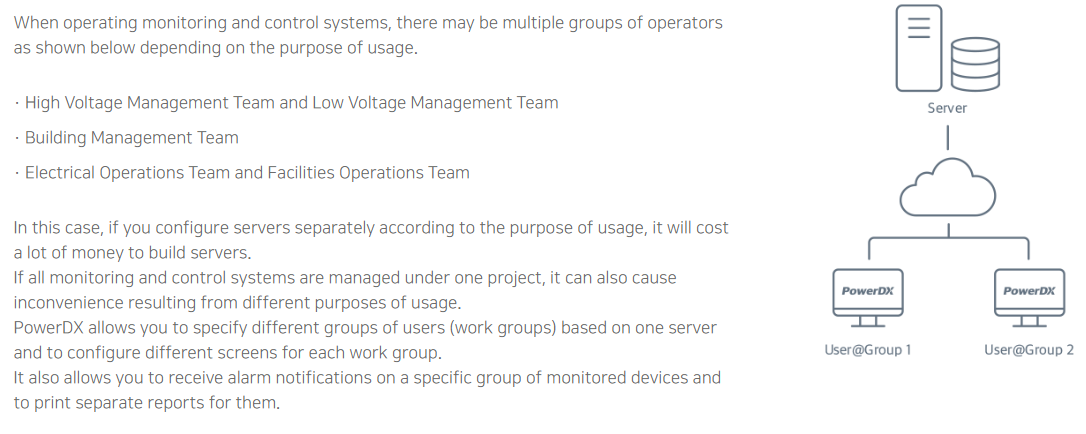

Operator Group Selection

When operating monitoring and control systems, there may be multiple groups of operators as shown below depending on the purpose of usage.

· High Voltage Management Team and Low Voltage Management Team

· Building Management Team

· Electrical Operations Team and Facilities Operations Team

In this case, if you configure servers separately according to the purpose of usage, it will cost a lot of money to build servers.

If all monitoring and control systems are managed under one project, it can also cause inconvenience resulting from different purposes of usage.

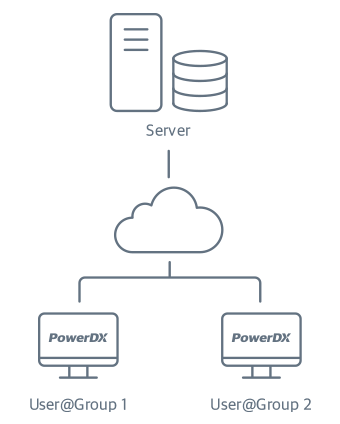

PowerDX allows you to specify different groups of users (work groups) based on one server and to configure different screens for each work group.

It also allows you to receive alarm notifications on a specific group of monitored devices and to print separate reports for them.

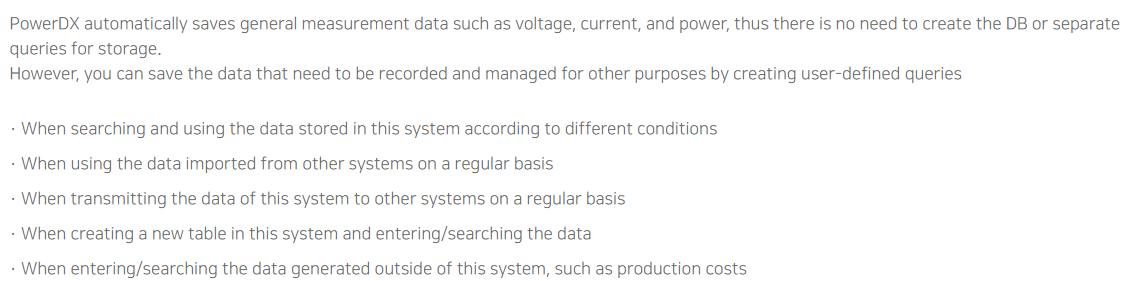

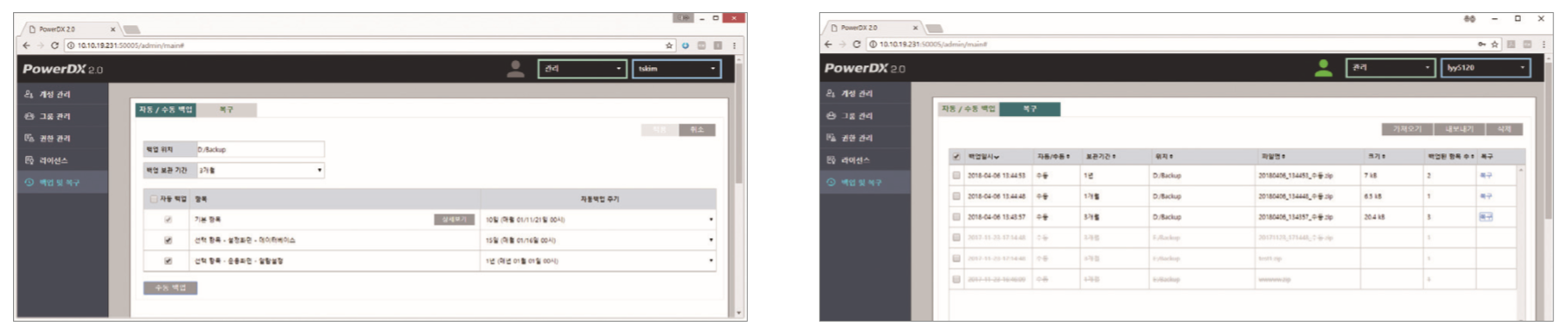

Creating User-Defined Queries

PowerDX automatically saves general measurement data such as voltage, current, and power, thus there is no need to create the DB or separate queries for storage.

However, you can save the data that need to be recorded and managed for other purposes by creating user-defined queries

· When searching and using the data stored in this system according to different conditions

· When using the data imported from other systems on a regular basis

· When transmitting the data of this system to other systems on a regular basis

· When creating a new table in this system and entering/searching the data

· When entering/searching the data generated outside of this system, such as production costs

Hourly Metering / Demand Control

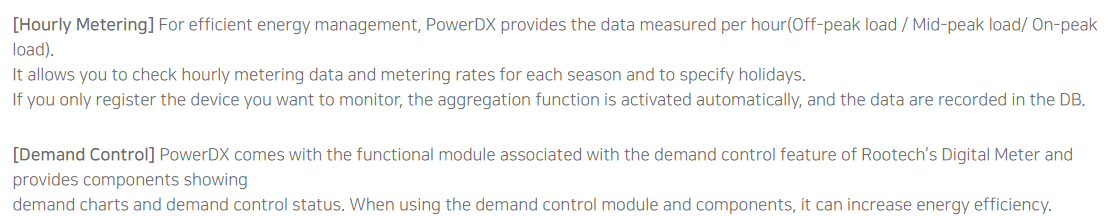

[Hourly Metering] For efficient energy management, PowerDX provides the data measured per hour(Off-peak load / Mid-peak load/ On-peak load).

It allows you to check hourly metering data and metering rates for each season and to specify holidays.

If you only register the device you want to monitor, the aggregation function is activated automatically, and the data are recorded in the DB.

[Demand Control] PowerDX comes with the functional module associated with the demand control feature of Rootech’s Digital Meter and provides components showing

demand charts and demand control status. When using the demand control module and components, it can increase energy efficiency.

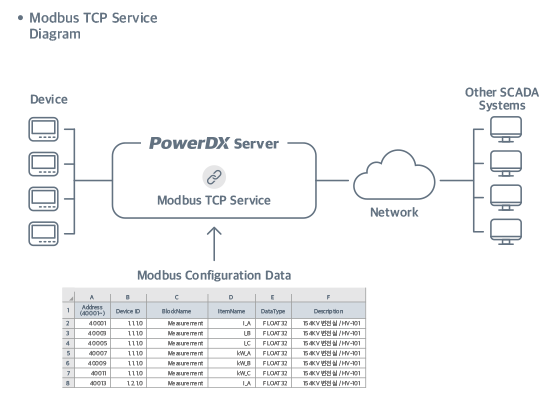

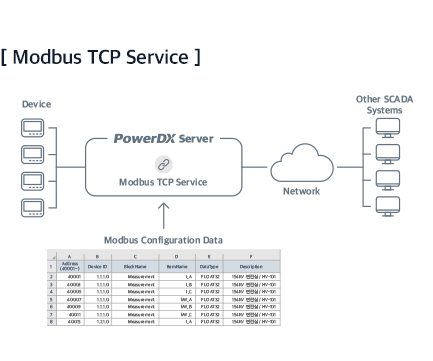

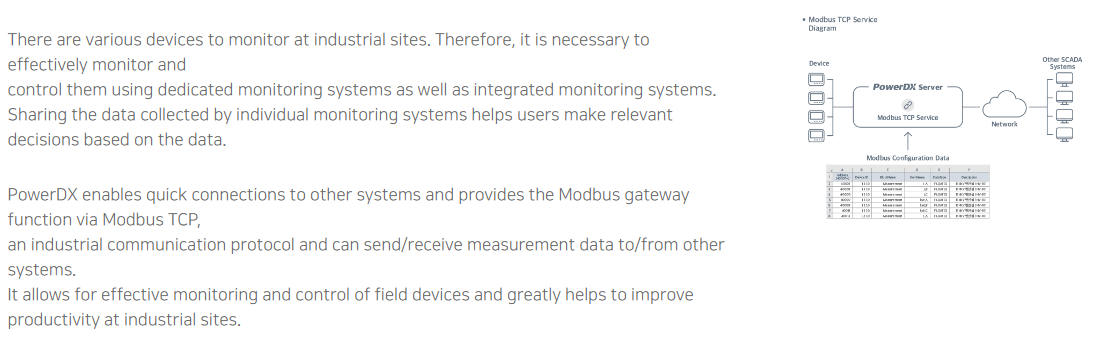

Modbus TCP Service

There are various devices to monitor at industrial sites. Therefore, it is necessary to effectively monitor and

control them using dedicated monitoring systems as well as integrated monitoring systems.

Sharing the data collected by individual monitoring systems helps users make relevant decisions based on the data.

PowerDX enables quick connections to other systems and provides the Modbus gateway function via Modbus TCP,

an industrial communication protocol and can send/receive measurement data to/from other systems.

It allows for effective monitoring and control of field devices and greatly helps to improve productivity at industrial sites.

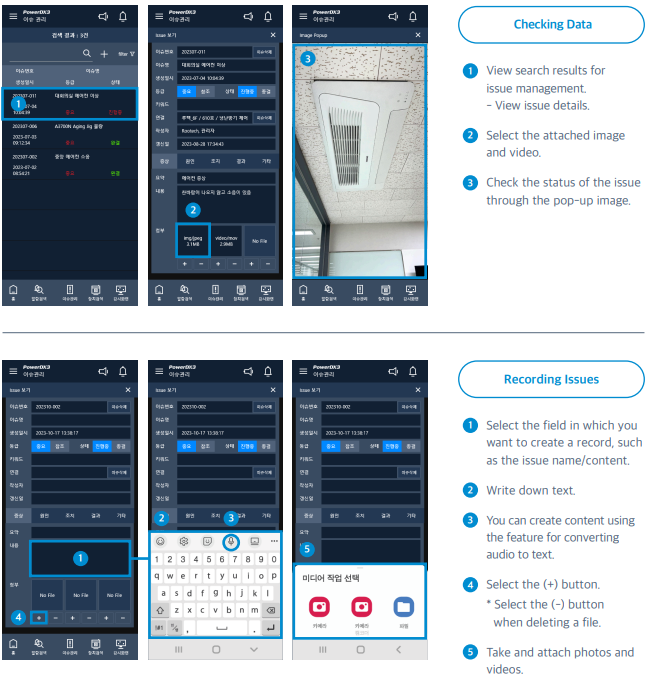

Issue Management

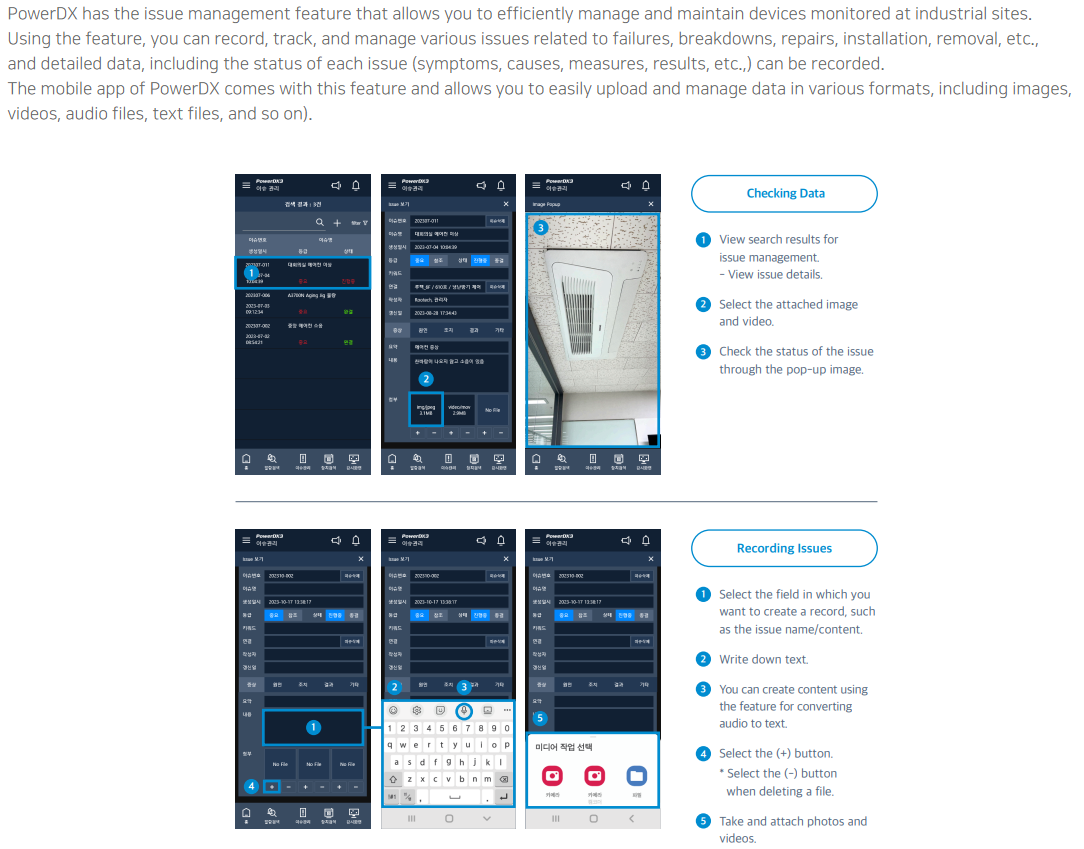

PowerDX has the issue management feature that allows you to efficiently manage and maintain devices monitored at industrial sites.

Using the feature, you can record, track, and manage various issues related to failures, breakdowns, repairs, installation, removal, etc.,

and detailed data, including the status of each issue (symptoms, causes, measures, results, etc.,) can be recorded.

The mobile app of PowerDX comes with this feature and allows you to easily upload and manage data in various formats, including images, videos, audio files, text files, and so on).

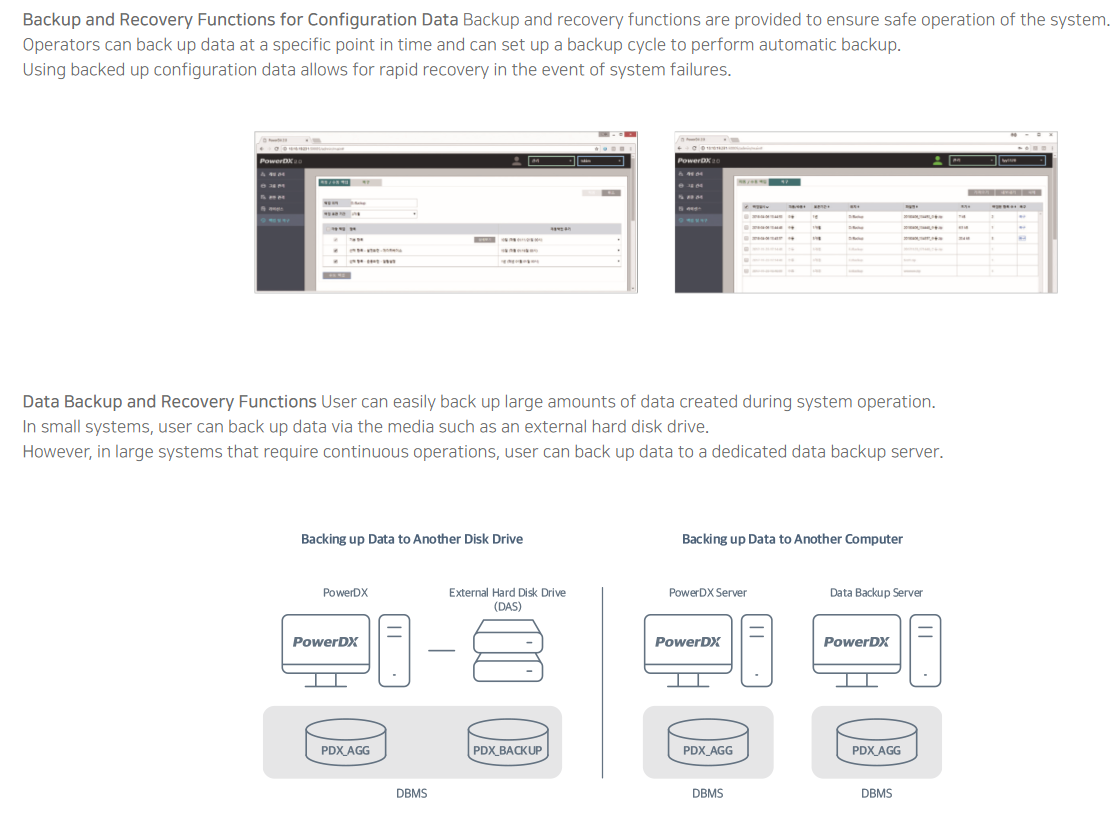

Backup and Recovery Functions

Backup and Recovery Functions for Configuration Data Backup and recovery functions are provided to ensure safe operation of the system.

Operators can back up data at a specific point in time and can set up a backup cycle to perform automatic backup.

Using backed up configuration data allows for rapid recovery in the event of system failures.

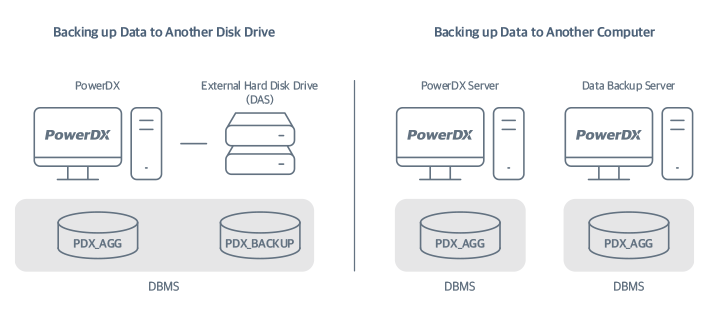

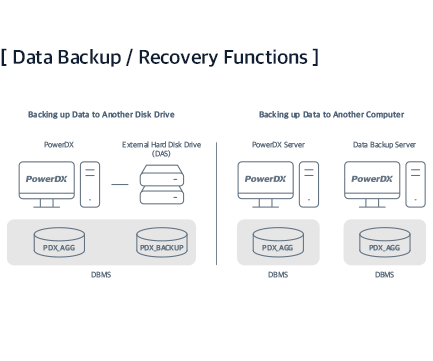

Data Backup and Recovery Functions User can easily back up large amounts of data created during system operation.

In small systems, user can back up data via the media such as an external hard disk drive.

However, in large systems that require continuous operations, user can back up data to a dedicated data backup server.

Stable Servers

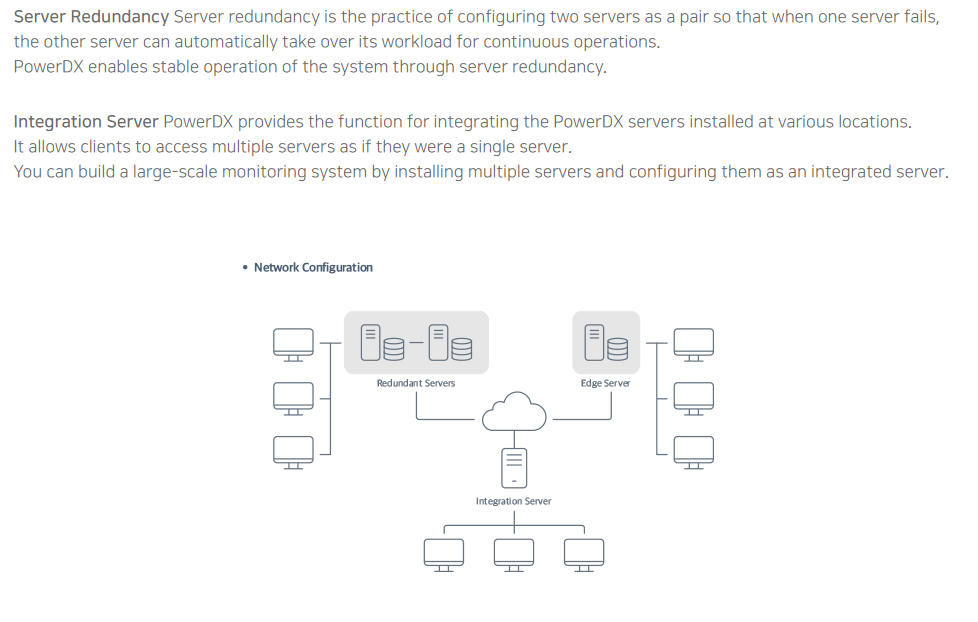

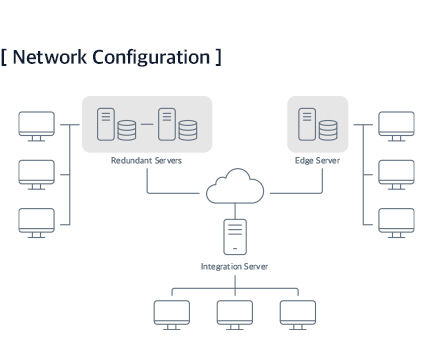

Server Redundancy Server redundancy is the practice of configuring two servers as a pair so that when one server fails,

the other server can automatically take over its workload for continuous operations.

PowerDX enables stable operation of the system through server redundancy.

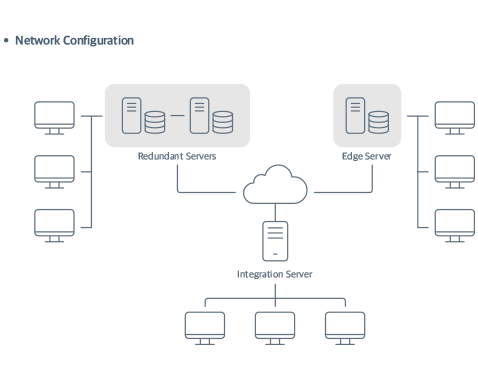

Integration Server PowerDX provides the function for integrating the PowerDX servers installed at various locations.

It allows clients to access multiple servers as if they were a single server.

You can build a large-scale monitoring system by installing multiple servers and configuring them as an integrated server.

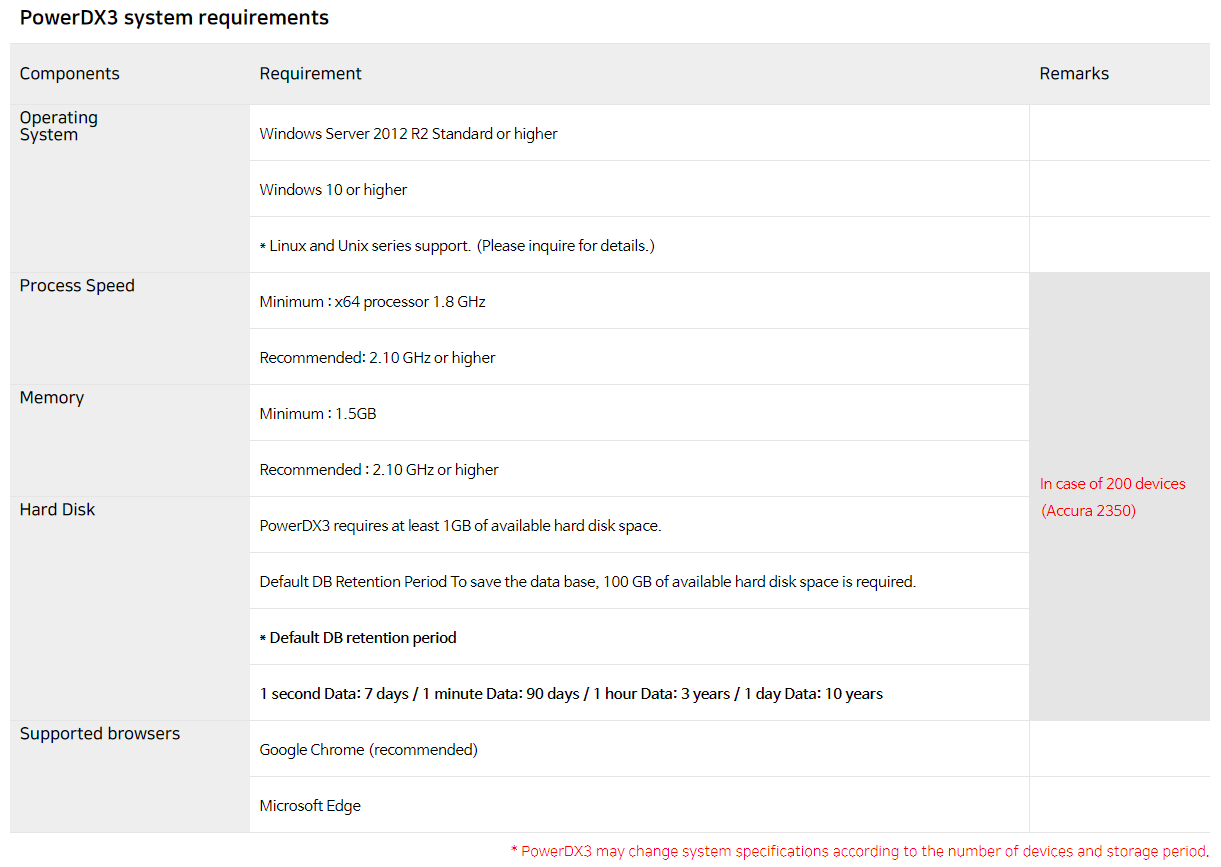

PowerDX3 system requirements
Components	Requirement	Remarks
Operating System	Windows Server 2012 R2 Standard or higher
	Windows 10 or higher
	* Linux and Unix series support. (Please inquire for details.)
Process Speed	Minimum : x64 processor 1.8 GHz	In case of 200 devices (Accura 2350)
	Recommended: 2.10 GHz or higher
Memory	Minimum : 1.5GB
	Recommended : 2.10 GHz or higher
Hard Disk	PowerDX3 requires at least 1GB of available hard disk space.
	Default DB Retention Period To save the data base, 100 GB of available hard disk space is required.
	* Default DB retention period
	1 second Data: 7 days / 1 minute Data: 90 days / 1 hour Data: 3 years / 1 day Data: 10 years
Supported browsers	Google Chrome (recommended)
	Microsoft Edge

* PowerDX3 may change system specifications according to the number of devices and storage period.

What is a demo site?

- PowerDX3 demo site.

- User can experience various functions of PowerDX3 without installation process.

How to apply

- Please fill in the form below and send it to smartsoultion@rootech.com

● User information: Company, name, e-mail

● Purpose of use: Simply write

● Preferred use period: start date, use period (up to 10 days)

Approval procedure

- I confirm the application mail every Monday and Wednesday.

- On a first-come, first-served basis, approval is delayed if there are many applicants.

- We will reply to user’s email for approval.

1st PowerDX3 Distributor Training

● Schedule: 2018-11-26 ~ 2018-11-30 (5 days)
● Location: Rootech, Inc.
● Target: Distributor
● Content: PowerDX3 Overall

Day1 (Beginner)	Curriculum and Introduction to PowerDX3
	(Practice) Installation and environment construction: DB, PowerDX3 installation, license renewal
	(Practice) Management screen
	(Practice) Real device composition and checking communication status
	(Practice) Operation Screen
	(Practice) Alarms and Reports

Day2 (Intermediate-1)	(Practice) Communication Protocol and Map Basic	Day3 (Intermediate-2)	(Practice) Report authoring tool
	(Practice) Data Basic		(Practice) Scheduler
	(Practice) Advanced Search		(Practice) Alarm connection
	(Practice) Configuring Virtual devices composition		(Practice) Backup and Restore
	(Practice) Screen authoring basic		(Practice) PDX2 shared site

Day4(Advanced-1)	(Practice) Map advanced	Day5(Advanced-2)	(Practice) Real device composition using Arachne (Practice) Test environment composition using emulator
	(Practice) Additional Functions 1		(Practice) Screen authoring advanced
	(Practice) Additional Functions 2		Server redundancy
	(Practice) Data advanced		Integrated server
			Q&A Educational evaluation questionnaire and completion ceremony
