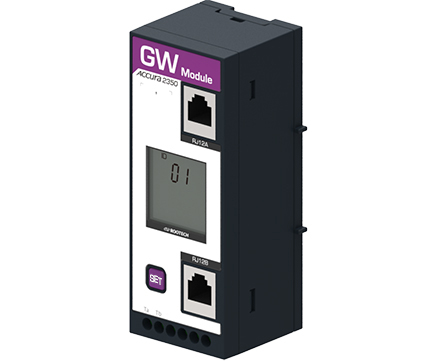

Collect data of RS-485 communicable peripheral devices
collect a total of 60 data from one or more RS-485 communication devices
Collect and forward data to Accura 2300S[or 2300]
Download Catalog

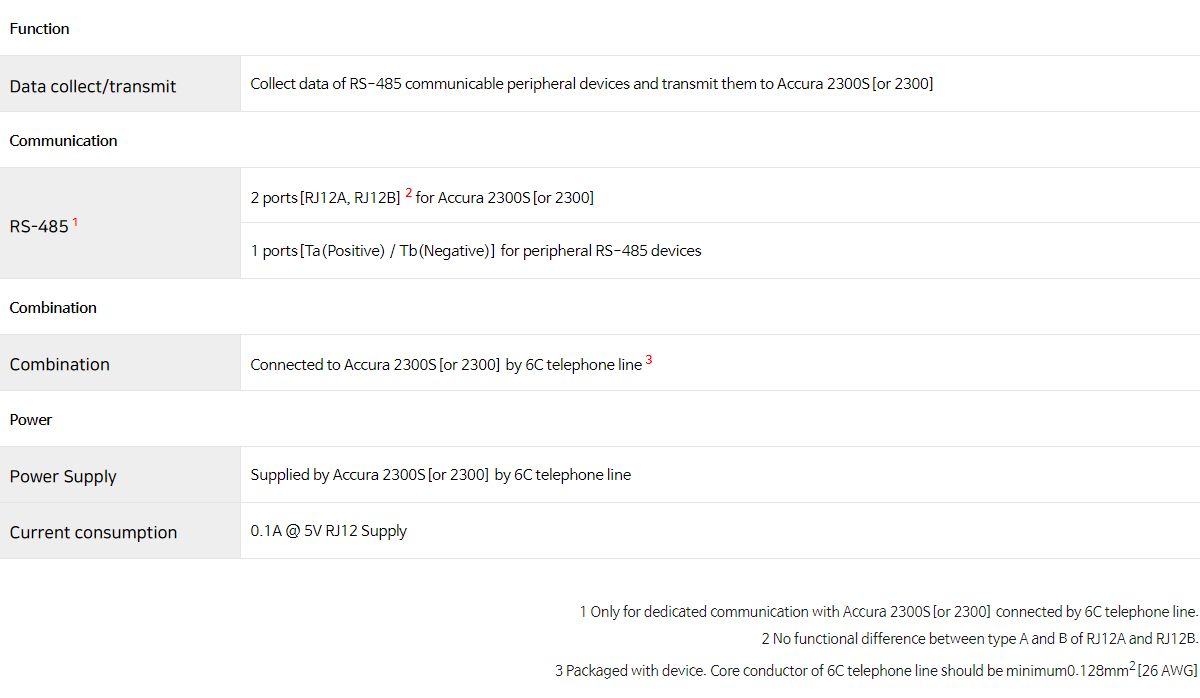

Function
Data collect/transmit
Collect data of RS-485 communicable peripheral devices and transmit them to Accura 2300S[or 2300]

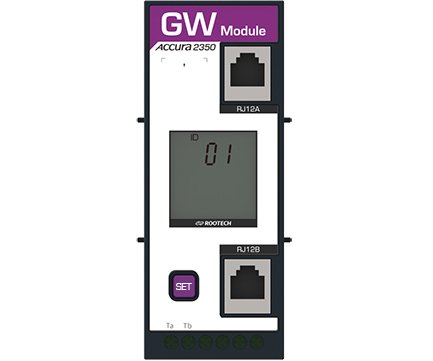

Communication
RS-4851
2 ports[RJ12A, RJ12B]2 for Accura 2300S[or 2300]
1 ports[Ta(Positive) / Tb(Negative)] for peripheral RS-485 devices
Combination
Combination
Connected to Accura 2300S[or 2300] through 6C telephone line3
Power
Power Supply
Supplied by Accura 2300S[or 2300] through 6C telephone line
Current consumption
0.1A @ 5V RJ12 Supply
1 Only for dedicated communication with Accura 2300S[or 2300] connected by 6C telephone line.
2 No functional difference between type A and B of RJ12A and RJ12B.
3 Packaged with device. Core conductor of 6C telephone line should be minimum0.128mm2[26 AWG]

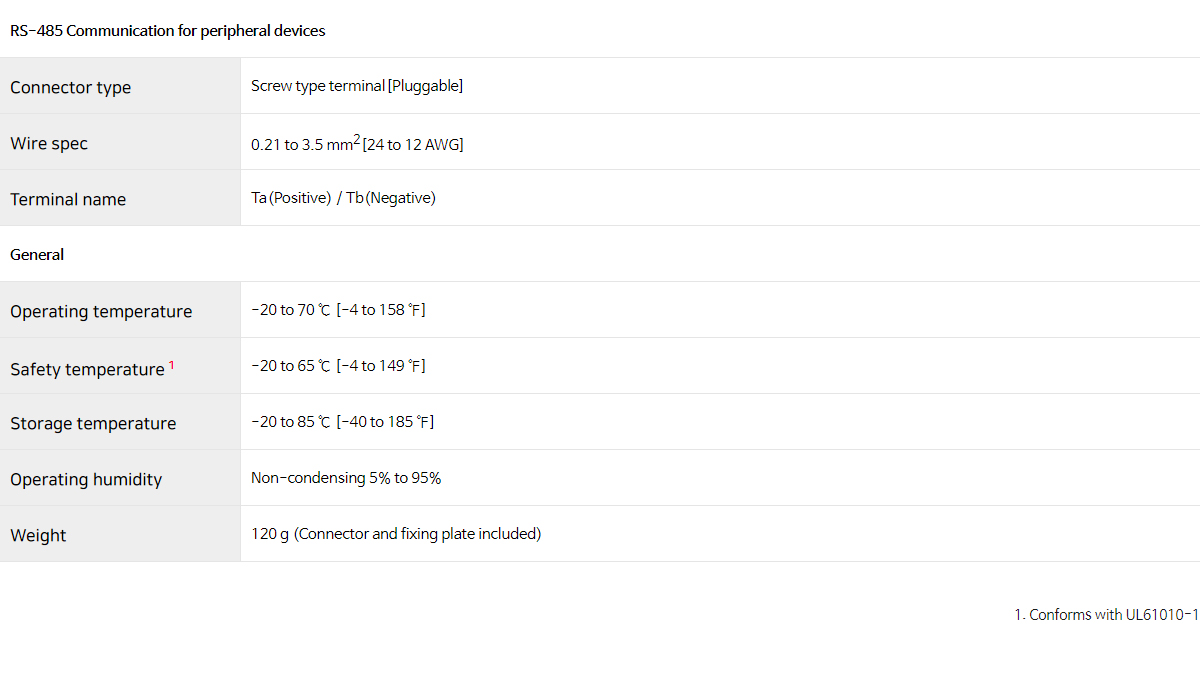

RS-485 Communication for peripheral devices
Connector type
Screw type terminal[Pluggable]
Wire spec
0.21 to 3.5 mm2[24 to 12 AWG]
Terminal name
Ta(Positive) / Tb(Negative)
General
Operating temperature
-20 to 70 ℃ [-4 to 158 ℉]
Safety temperature1
-20 to 65 ℃ [-4 to 149 ℉]
Storage temperature
-20 to 85 ℃ [-40 to 185 ℉]
Operating humidity
Non-condensing 5% to 95%
Weight
120 g (Connector and fixing plate included)
1. Conforms with UL61010-1
