ROOTECH - Energy Solution for Human and Nature

Overview

Deals with Management Need for Consumption Power of Motor and Improves MCC Space Efficiency

Precision Measurement to meet IEC 61557-12 Class 0.5

Blocks the Spread of Accident by Ground Current through Accurate Measurement of Ground Current

Provides Two Type Modules(Protection Module/Protection&Control Module) for Selection According to Purpose

Diversification of Rated Current of Motor-Unit Protection[Control] Module for MCC Space Efficiency and Precision Measurement

Providing power/energy based on inverter output voltage measurement of inverter-driving motor-unit

Provides Convenience for Maintenance

HMI Module that Supports Device Redundancy

Excellent Field Analysis through Integrated HMI Module with Color Touch TFT LCD

LOP Control Module and LOP Control Gateway for Communication with LOP(Local Operating Panel)

Communication Redundancy with Improved Communication Reliability between Devices

Supports Device Redundancy for the Field that Requires High Reliability

Provides Setup Manager for All Setting and Commissioning through Communication

Provides Control Logic Editor to Provide Control Flexibility

Possible to Implement MCC Level Control Logic

Motor-Unit Protection[Control] HMI Module

Accura 2750P[C] Link action

Display information of Motor-unit

Support setup of Motor-unit

Download Catalog

AccuraSM Program Download

Accura 2700/2750

Accura 2700M Accura 2700D Accura 2750P[C] Accura 2750INV/VOL

Accura 2700/2750

Accura 2750D[C/CI] Motor-Unit Protection[Control] HMI Module

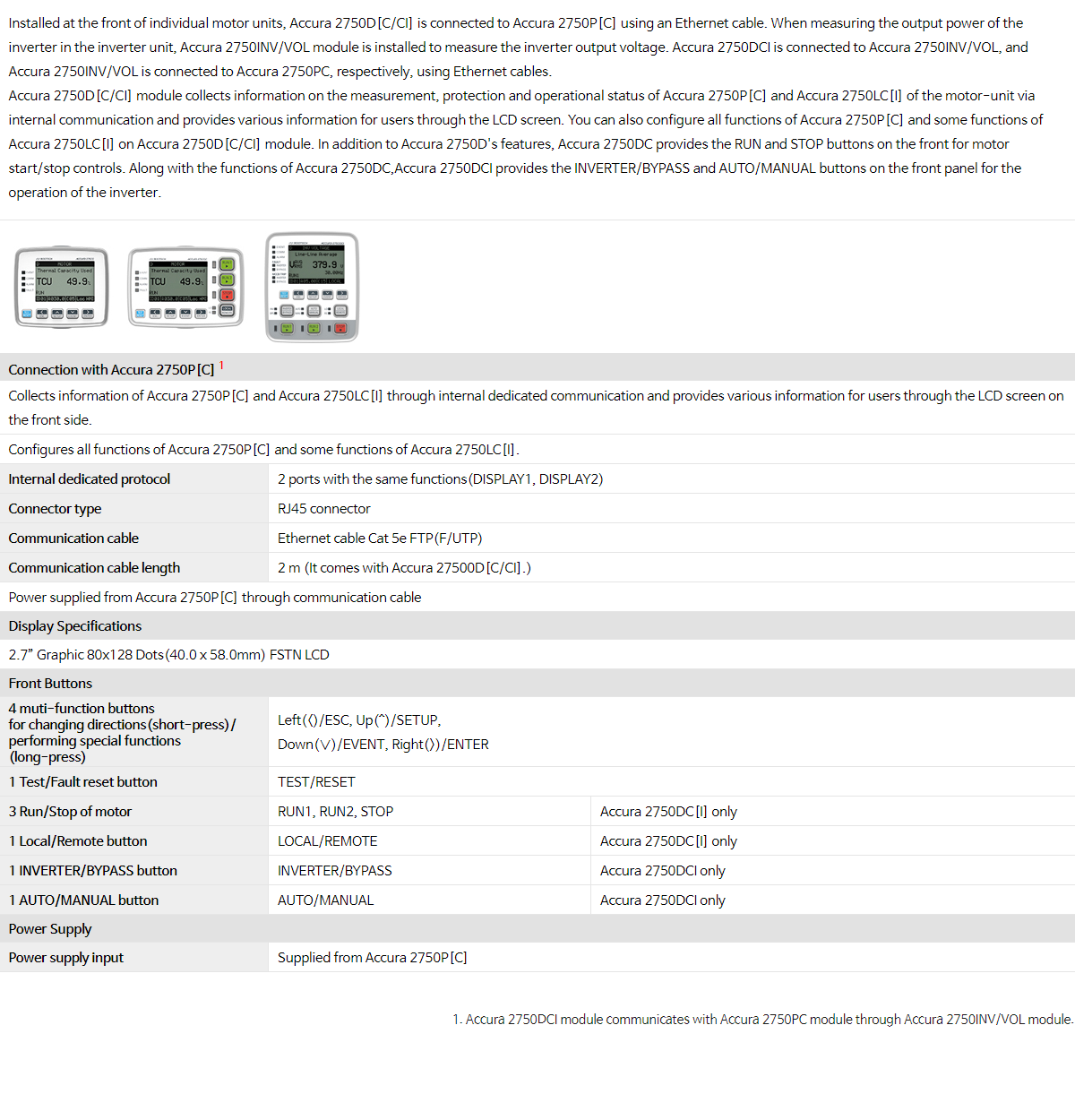

Installed at the front of individual motor-units, Accura 2750D[C/CI] is connected with Accura 2750P[C] with the Ethernet cable. When measuring the output power of the inverter in the inverter-unit, Accura 2750INV/VOL module is installed to measure the inverter output voltage. Using the Ethernet cable, Accura 2750DCI and Accura 2750INV/VOL are connected with Accura 2750INV/VOL and Accura 2750PC, respectively. Accura 2750D[C/CI] module collects information on the measurement, protection and operational status of Accura 2750P[C] and Accura 2750LC[I] of the motor-unit via internal communication and provides various information for users through the LCD screen. You can also configure all functions of Accura 2750P[C] and some functions of Accura 2750LC[I] on Accura 2750D[C/CI] module. In addition to Accura 2750D's features, Accura 2750DC provides the RUN and STOP buttons on the front for motor start/stop controls. Along with the functions of Accura 2750DC, Accura 2750DCI provides the INVERTER/BYPASS and AUTO/MANUAL buttons on the front for the operation of the inverter. Accura 2750D supports redundancy of Accura 2750P module by connecting two Accura 2750P modules simultaneously via its two built-in communication ports. Accura 2750DC[I] supports redundancy of Accura 2750PC module by connecting one Accura 2750PC module with one Accura 2750P module simultaneously via its two built-in communication ports.
Connection with Accura 2750P[C]¹
Collects information of Accura 2750P[C] and Accura 2750LC[I] through internal dedicated communication and provides various information for users through the LCD screen on the front side.
Configures all functions of Accura 2750P[C] and some functions of Accura 2750LC[I].
Internal dedicated protocol	2 ports with the same functions(DISPLAY1, DISPLAY2)
2 ports: Connects 2 Accura 2750P[C] modules	Supports redundancy of the protection function
Connector type	RJ45 connector
Communication cable	Ethernet cable Cat 5e FTP[F/UTP]
Communication cable length	Maximum 3.5m
Power supplied from Accura 2750P[C] through communication cable
Display Specifications
2.7” Graphic 80x128 Dots(40.0 x 58.0mm) FSTN LCD
Front Buttons
4 muti-function buttons for changing directions(short-press)/ performing special functions (long-press)	Left(<)/ESC, Up(^)/SETUP, Down(∨)/EVENT, Right(>)/ENTER
1 Test/Fault reset button	TEST/RESET
3 Run/Stop of motor	RUN1, RUN2, STOP	Accura 2750DC[I] only
1 Local/Remote button	LOCAL/REMOTE	Accura 2750DC[I] only
1 INVERTER/BYPASS button	INVERTER/BYPASS	Accura 2750DCI only
1 AUTO/MANUAL button	AUTO/MANUAL	Accura 2750DCI only
Control Power Supply
Power supply	Supplied from Accura 2750P[C]

1. Accura 2750DCI module communicates with Accura 2750PC module through Accura 2750INV/VOL module.

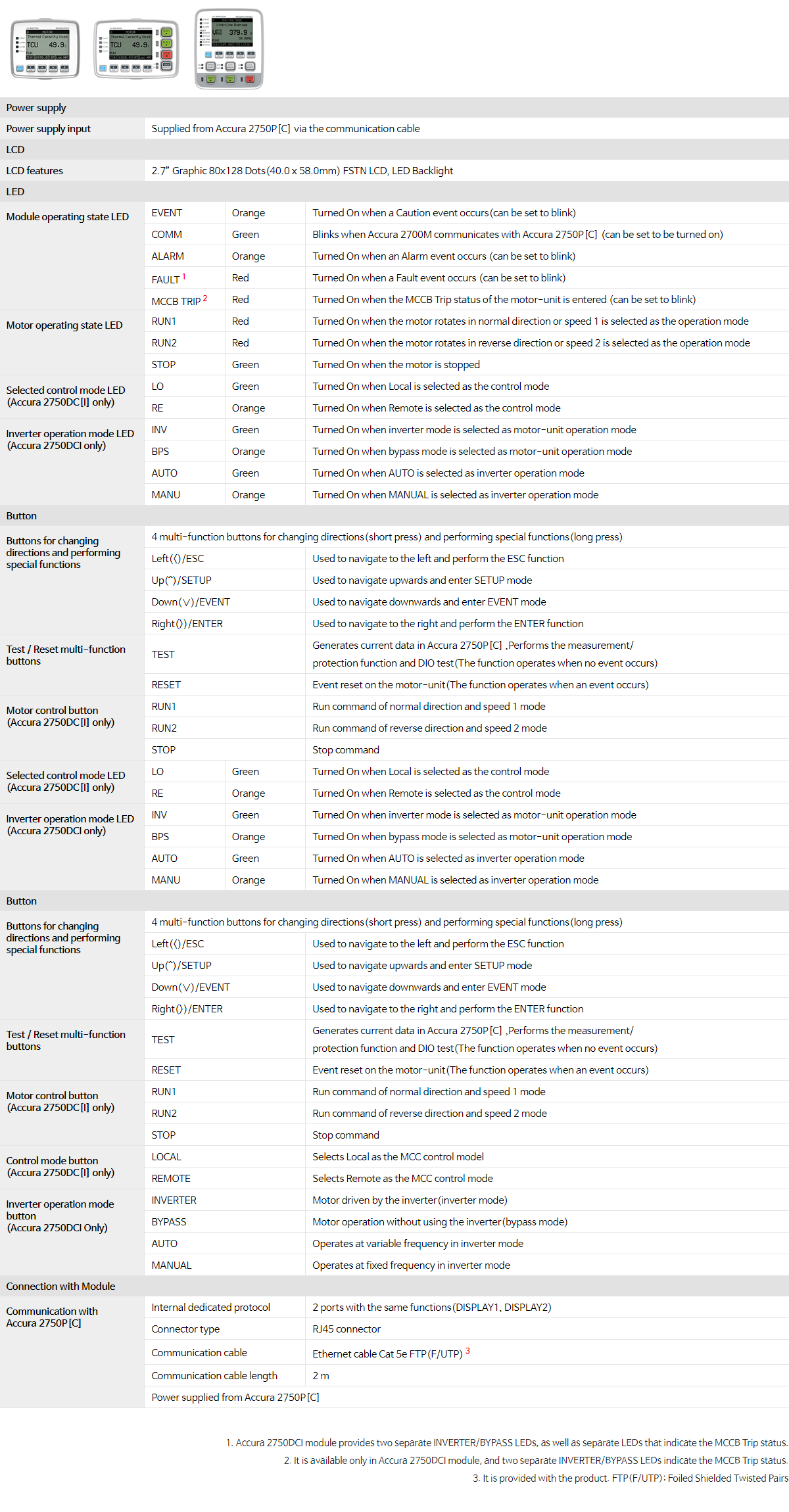

Accura 2750D[C/CI] Motor-Unit Protection[Control]HMI Module

Power supply
Control power supply input	Supplied via communication cable from Accura 2750P[C]
LCD
LCD features	2.7” Graphic 80x128 Dots(40.0 x 58.0mm) FSTN LCD, LED Backlight
LED
Module operating state LED	EVENT	Orange	Turned On when a Caution event occurs(can be set to Blink)
	COMM	Green	Blinks when Accura 2700M communicates with Accura 2750P[C] (can be set to ON)
	ALARM	Orange	Turned On when an Alarm event occurs(can be set to Blink)
	FAULT¹	Red	Turned On when a Fault event occurs(can be set to Blink)
	MCCB TRIP²	Red	Turned On when the MCCB Trip status of the motor-unit is entered(can be set to Blink)
Motor operating state LED	RUN1	Red	Turned On when the motor rotates in normal direction or speed 1 is selected as the operation mode
	RUN2	Red	Turned On when the motor rotates in reverse direction or speed 2 is selected as the operation mode
	STOP	Green	Turned On when the motor is stopped
Selected control mode LED (Accura 2750DC[I] only)	LO	Green	Turned On when Local is selected as the control mode
	RE	Orange	Turned On when Remote is selected as the control mode
Inverter operation mode LED (Accura 2750DCI only)	INV	Green	Turned On when inverter mode is selected as motor-unit operation mode
	BPS	Orange	Turned On when bypass mode is selected as motor-unit operation mode
	AUTO	Green	Turned On when AUTO is selected as inverter operation mode
	MANU	Orange	Turned On when MANUAL is selected as inverter operation mode
Button
Buttons for changing directions and performing special functions	4 multi-function buttons for changing directions(short press) and performing special functions(long press)
	Left(<)/ESC		Move Left and ESC function
	Up(^)/SETUP		Move up and enter SETUP mode
	Down(∨)/EVENT		Move down and enter EVENT mode
	Right(>)/ENTER		Move right and ENTER function
Test / Reset multi-function buttons	TEST		Generates current data in Accura 2750P[C] ,Performs the measurement/ protection function and DIO test(The function operates when no event occurs)
	RESET		Event reset on the motor-unit(The function operates when an event occurs)
Motor control button (Accura 2750DC[I] only)	RUN1		Run command of normal direction and speed 1 mode
	RUN2		Run command of reverse direction and speed 2 mode
	STOP		Stop command
Control mode button (Accura 2750DC[I] only)	LOCAL		Selects Local as the MCC control model
	REMOTE		Selects Remote as the MCC control mode
Inverter operation mode button (Accura 2750DCI Only)	INVERTER		Motor driven by the inverter(inverter mode)
	BYPASS		Motor operation without using the inverter(bypass mode)
	AUTO		Operates at variable frequency in inverter mode
	MANUAL		Operates at fixed frequency in inverter mode
Connection with Module

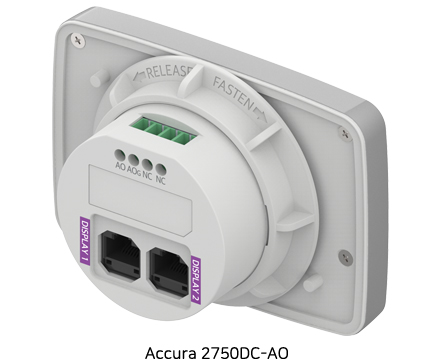

Communication with Accura 2750P[C]	Internal dedicated protocol		2 ports with the same functions (DISPLAY1, DISPLAY2)
	2 ports: connects 2 Accura 2750P[C] modules		Function redundancy supported for protection function
	Connector type		RJ45 connector
	Communication cable		Ethernet cable Cat 5e FTP[F/UTP]³
	Communication cable length		Maximum 3.5m⁴
	Power supplied from Accura 2750P[C]

1. Accura 2750DCI module provides two separated INVERTER/BYPASS LEDs,
as well as separate LEDs that indicate the MCCB Trip status.
2. It is available only in Accura 2750DCI module, and two separate INVERTER/BYPASS LEDs indicate the MCCB Trip status.
3. It is provided with the product. FTP(F/UTP): Foiled Shield Twisted Pair
4. It can be selected among 2.5m / 3.0m / 3.5m when ordering the product.

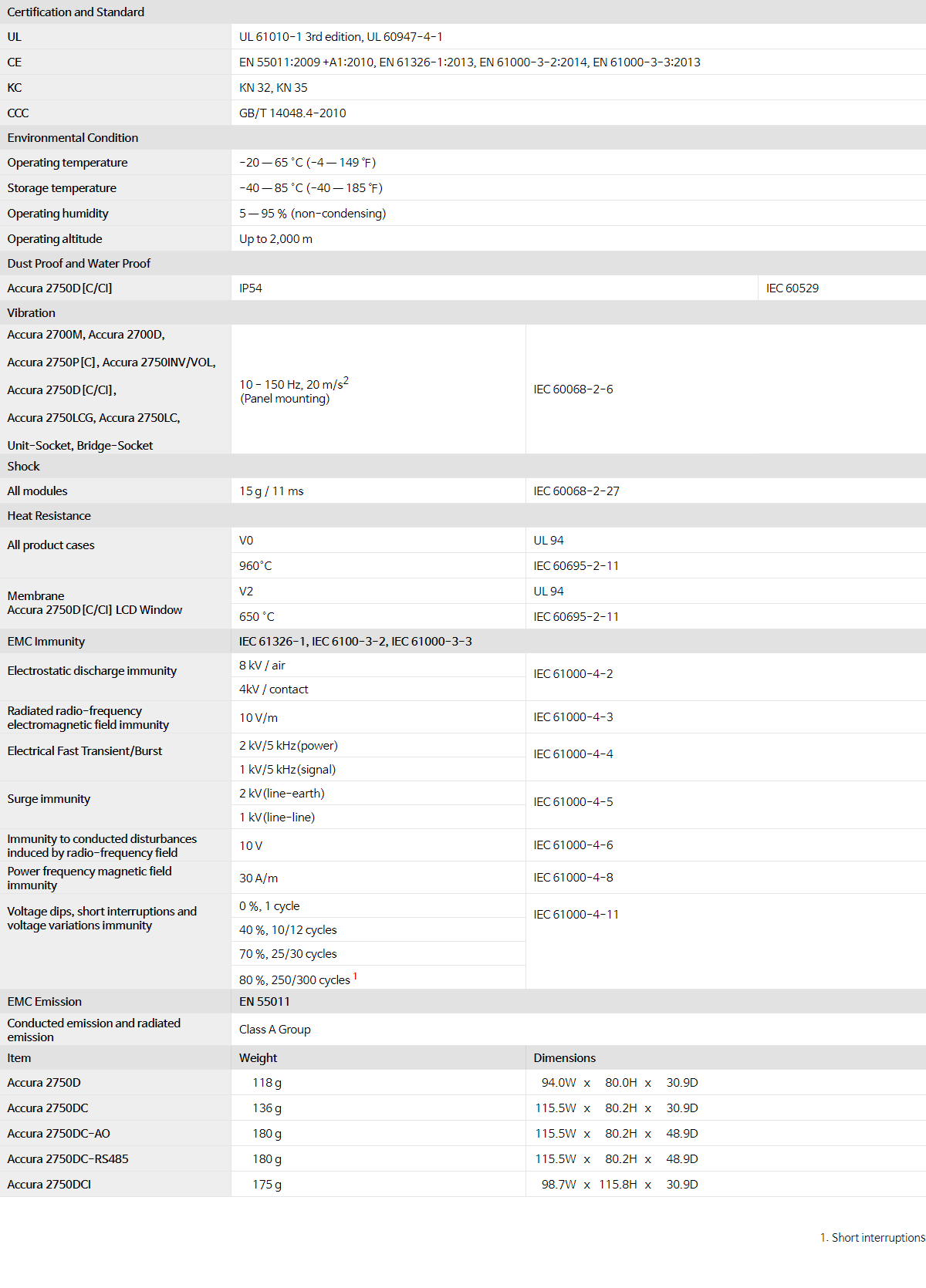

General Specifications

Certification and Standard
UL	UL61010-1, UL60947-4-1
CE	EN61326-1, EN55011
KC	KN22, KN24
Environment
Operating temperature	-20 to 65℃ (-4℉ to 149℉)
Storage temperature	-40 to 85℃ (-40℉ to 185℉)
Humidity	5% to 95% Non-Condensing
Dust Proof and Water Proof
Accura 2750D[C/CI]	IP54		IEC 60529
Vibration
Accura 2700M, Accura 2700D, Accura 2750P[C], Accura 2750INV/VOL Accura 2750D[C/CI], Accura 2750LCG, Accura 2750LC[I], Unit-Socket, Bridge-Socket	10 - 150Hz, 20m/s²(Fixed panel installation)	IEC 60068-2-6
Shock
All modules	15 g / 11 ms		IEC 60068-2-27
Heat Resistance
All product cases	V0		UL94
	960°C		IEC 60695-2-11
Membrane Accura 2750D[C] LCD Window	V2		UL94
	650 °C		IEC 60695-2-11
EMC(Immunity)	IEC 60947-5-1	ROOTECH	IEC 60947-1
Electrostatic Discharge	8kV / air	12kV / air	IEC 61000-4-2
	4kV / contact	12kV / contact
Radiated Radio-Frequency Electromagnetic Field	10V/m	10V/m	IEC 61000-4-3
Electrical Fast Transient/Burst	2kV/5kHz(power)	7kV/5kHz(power)	IEC 61000-4-4
	1kV/5kHz(signal)	7kV/5kHz(signal)
Surge	2kV(line-earth)	4kV(line-earth)	IEC 61000-4-5
	1kV(line-line)	2kV(line-line)
Conducted Disturbances Induced by Radio Frequency Field	10V	10V	IEC 61000-4-6
Power Frequency Magnetic Field	30A/m	30A/m	IEC 61000-4-8
Voltage Dips	0%, 0.5cycle	0%, more than 5sec	IEC 61000-4-11
	40%, 10/12 cycles
	70%, 25/30 cycles
	80%, 250/300 cycles
Voltage Interruption(Class C)	0%, 250/300cycles	0%, 5sec more	IEC 61000-4-11
EMC Emission	IEC 60947-5-1	ROOTECH	IEC 60947-1
Emission	CISPR 11 Group1 Class A	CISPR 11 Group1 Class A	CISPR 11
Weight
Accura 2750D	118 g
Accura 2750DC	136 g

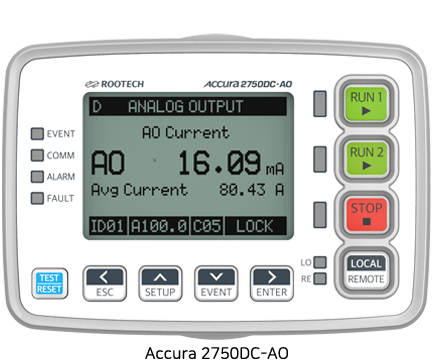

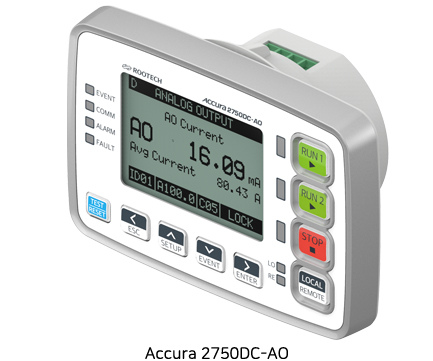

Accura 2750DC-AO	180 g

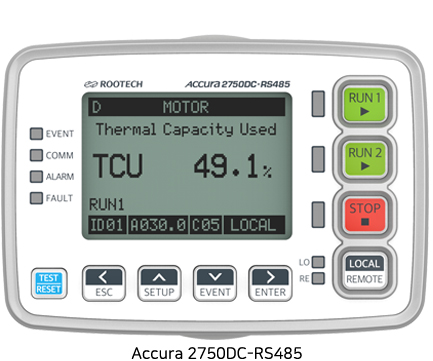

Accura 2750DC-RS485	180 g
Accura 2750DCI	175 g
Size[mm]
Accura 2750D	94.0W x 80.0H x 30.9D
Accura 2750DC	115.5W x 80.2H x 30.9D
Accura 2750DC-AO	115.5W x 80.2H x 48.9D
Accura 2750DC-RS485	115.5W x 80.2H x 48.9D
Accura 2750DCI	98.7W x 115.8H x 30.9D
