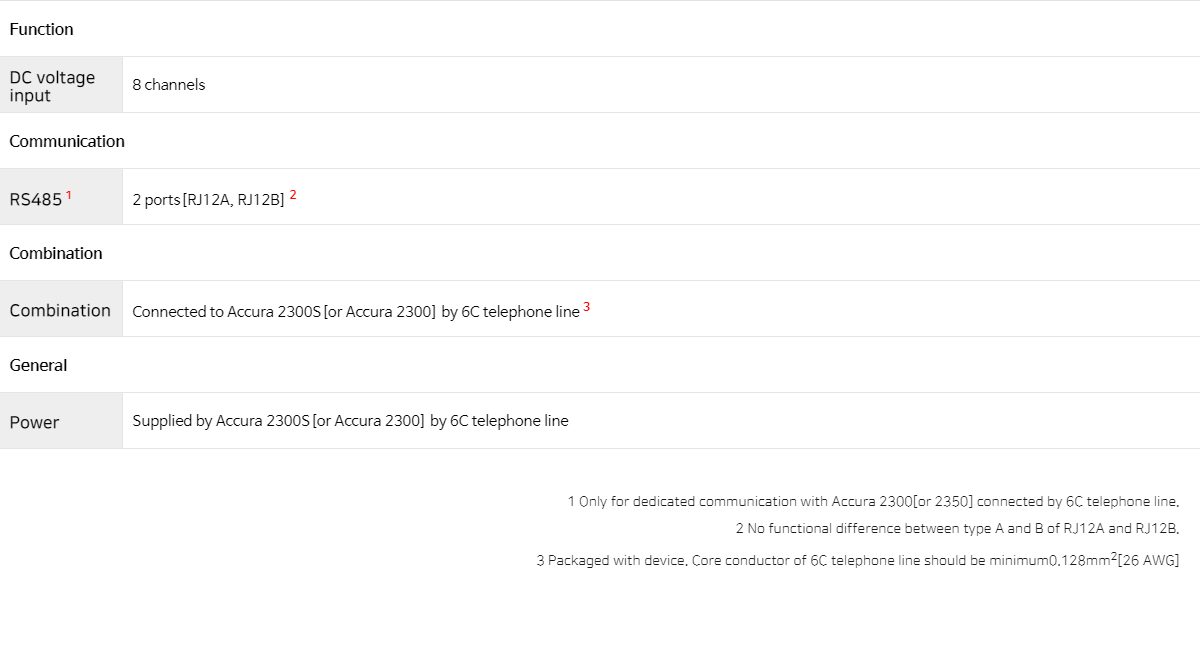

Connected to Accura 2300S(or 2300) through 6C telephone line3

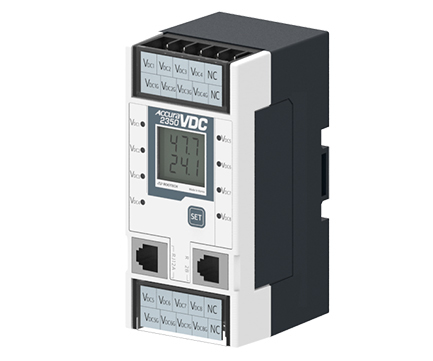

General
Power
Supplied by Accura 2300S(or 2300) through 6C telephone line
1. Accura 2350-VDC performs RS-485 communication with Accura 2300S or 2300 using the 6C telephone line.
2. RJ12A and RJ12B ports have the same functions.
3. Provided with the device. The inner conducting wire of 6C telephone line should be at least 0.128mm2(26 AWG)

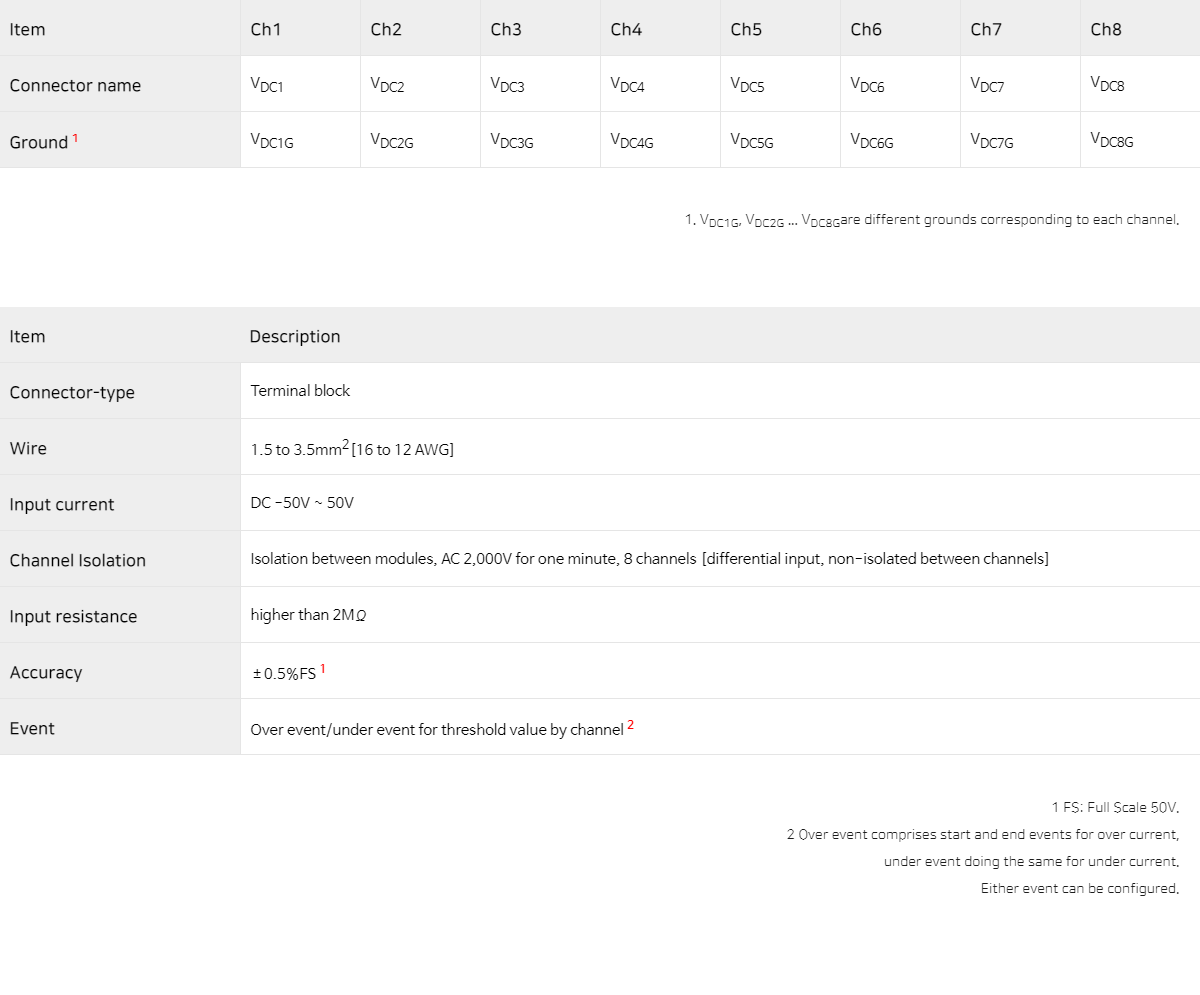

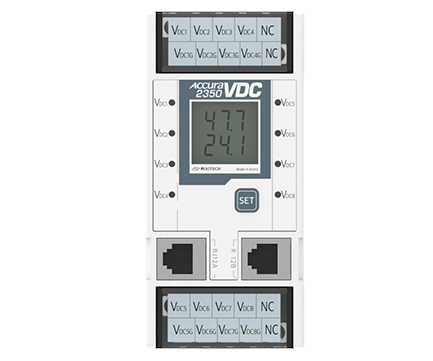

DC voltage input/Channels
DC voltage input/Channels
Item
Ch1
Ch2
Ch3
Ch4
Ch5
Ch6
Ch7
Ch8
Connector name
VDC1
VDC2
VDC3
VDC4
VDC5
VDC6
VDC7
VDC8
Ground1
VDC1G
VDC2G
VDC3G
VDC4G
VDC5G
VDC6G
VDC7G
VDC8G
1. VDC1G, VDC2G ... VDC8Gare different grounds corresponding to each channel.
Item
Description
Connector-type
Terminal block
Wire
1.5 to 3.5mm2(16 to 12 AWG)
Input current
DC -50V ~ 50V
Channel Isolation
Isolation between modules, AC 2,000V for one minute, 8 channels (differential input, non-isolated between channels)
Input resistance
higher than 2M¥Ø
Accuracy
¡¾0.5% FS1
Event
Over/under event for threshold value by channel2
1. Full Scale (FS) indicates 20 mA.
2. Over event comprises start and end events for over current,
under event doing the same for under current.
Either event can be configured.

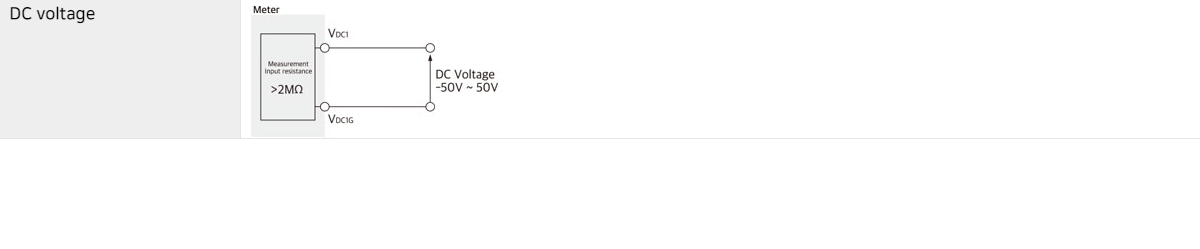

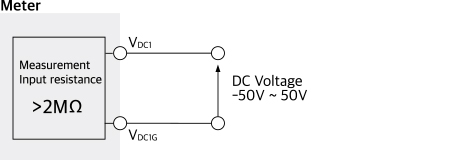

Application
Application
DC voltage

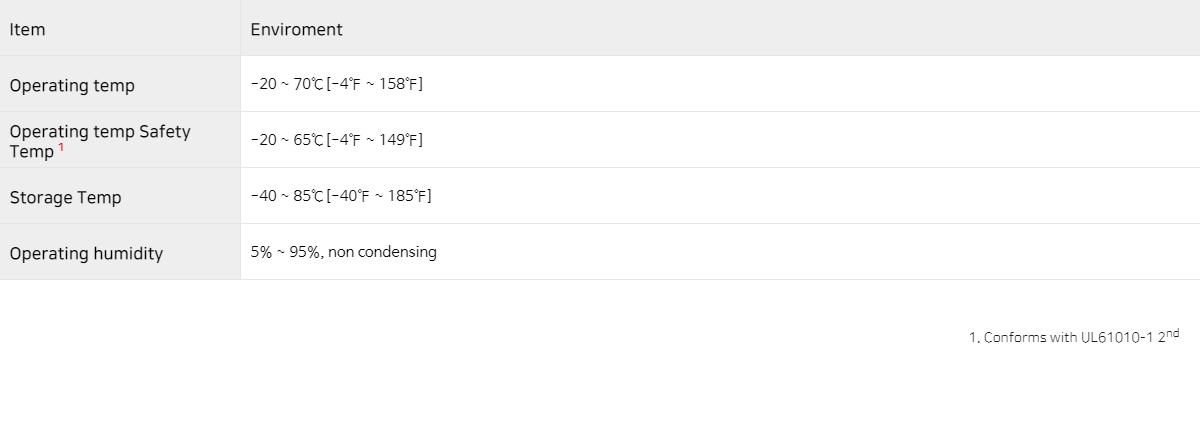

Environmental Conditions
Environmental Conditions
Item
Operating temp
-20 to 70¡É(-4 to 158¢µ)
Safe operating temp1
-20 to 65¡É(-4 to 149¢µ)
Storage temp
-40 to 85¡É(-40 to 185¢µ)
Operating humidity
5 ~ 95%, non-condensing
1. Compliant with the UL61010-1 standard
