Distribution Panel Digital Power Meter
Distribution Panel Digital Power Meter
Smart Distribution Panel Digital Power Meter/ Power Measuring Module
 Accura 2500  Accura 2550CM[Z]-3P  Accura 2550CM[D/Z]-1P
Accura 2500/2550
| · |
Voltage, current, and power measurements in AC/DC distribution panels |
| · |
Leakage current measurement with the built-in ZCT |
| · |
A variety of power quality data, including Dip(Sag)/Swell, PQ Curve available |
| · |
Class 0.5 Accuracy as per IEC 61557-12 |
| · |
Max/Min/Average values available within the aggregation interval |
| · |
Proven Safety and Reliability with CE/UL/KC Certifications |
| · |
Compatible with MCCBs with various ratings / compact Size |
| · |
Through-hole type structure for easier and safer installation |
| · |
Integrated HMI module with the 5” Color TFT LCD screen with touch panel |
| · |
Integrated or separate installation of the Integrated module and the Integrated HMI module |
Input/Output Module
Accura 2550DCM
| · |
DC Voltage Measurement:
Maximum 60 V, Minimum 0.5 V
(DCM-50V-80A)
Maximum 550 V, Minimum 5 V
(DCM-500V-80A) |
| · |
DC Current Measurement: Maximum 100 A, Minimum 0.08A
(DCM-50V-80A/DCM-500V-80A) |
| · |
DC Power/Energy Measurement |
| · |
Accura 2550DCM detects over/under voltage and current events based on measured DC voltage/current values. |
| · |
Digital outputs can be configured to operate when events occur. |
Accura 2550GW[M]
| · |
Accura 2550GW[M] modules collect data from peripheral devices supporting RS-485 communication and transmit the collected data to Accura 2500 device. |
| · |
With one or four RS-485 communication ports, Accura 2550GW[M] can collect up to 60 data items from devices using different communication protocols. |
| · |
It is possible to set a timeout period for a response packet. |
| · |
It is possible to set a delay time between the completion of data collection and the start of the next data collection. |
Accura 2550TEMP
· The module measures the internal and
external temperatures of distribution/
switchgear panels
· It can be connected to up to 6 Accura
TSEN devices(with the internal
temperature sensor)using the
communication cable up to 100 m long.
· The module supports 1 digital input channel and 1 digital output channel.
Accura 2550VOL
| · |
Support for Power Systems Consisting of Mixed Power Supplies |
| · |
A Variety of Power Quality Data, including Dip(Sag)/Swell and PQ Curve Available |
| · |
Accurate Leakage Current Measurement Data Available |
| · |
Max/Min/Average Values Available in Each Aggregation Interval |
| · |
Class 0.5 Accuracy as per IEC 61557-12 for Voltage, Current, Active Power, and Active Energy |
Distribution Panel Digital Power Meter/ Power Measuring Module
 Accura 2300  Accura 2350-3P  Accura 2350-1P
Accura 2300/2350
· Accurate Measurements: ±0.2/±0.5 % of
Reading (Voltage/Current) and Class 0.5S/
Class 0.2S (Active Energy)
· Proven Safety and Reliability with
CE/UL/KC Certifications
· THD, TDD, maximum/minimum
· Dip(Sag)/swell event
· Bridge Ethernet 2 ports
 Accura 2300S  Accura 2350-3P  Accura 2350-1P
Accura 2300S/2350
· Accurate Measurements: ±0.2/±0.5 % of
Reading (Voltage/Current) and Class 0.5S/
Class 0.2S (Active Energy)
· Proven Safety and Reliability with
CE/UL/KC Certifications
· THD, TDD, maximum/minimum
· Dip(Sag)/swell event
· Ethernet 2 ports(Ethernet switching)
· RS-485 1 port
· Mounting(ANSI 4", DIN96)
Input/Output Module
Accura 2350-DCM
| · |
DC Voltage measurement: 12 to 55V when the DCM-50V- 80A model operates alone |
|
0 to 55V when the DCM-50V- 80A model operates with Accura2300[S] |
|
0 to 550V when the DCM-500V- 80A model operates with Accura 2300[S] |
|
DC current measurement: 0 to 100A when the DCM-80A model operates. |
| · |
DC Current measurement: DC 0 to 100A Measurement |
| · |
DC power measurement |
| · |
Over/Under voltage or current events occur for measured DC voltage/current values. |
| · |
When events occur, alarms can be generated through digital outputs. |
| · |
5 event channels are supported. |
| |
|
Accura 2350-GW
| · |
Collects data from peripheral devices supporting RS-485 communication and transmits data to Accura 2300S(Accura 2300) |
Accura 2350-TEMP
| · |
Accura 2350-TEMP module measures the internal and external temperatures of distribution/switchgear panels. |
| · |
An event occurs when the internal/external temperature or the temperature difference rises above the set threshold.
|
| · |
When an event occurs in Accura 2350-TEMP module, the EVENT LED on the front of the module blinks. |
| · |
When an event occurs in Accura TSEN device, the Red LED on the front of the device blinks.(The Green LED is on during normal operation) |
| · |
Internal temperature events are reset with the RESET button on Accura TSEN. |
| · |
Up to 6 Accura TSEN devices(with the internal temperature sensor) can be connected with the communication cable up to 100 m long. |
| · |
The module supports 1 digital input channel and 1 digital output channel. |
Accura 2350-TEMPS
| · |
Accura 2350-TEMPS module measures the internal and external temperatures of distribution/switchgear panels. |
| · |
An event occurs when the internal/external temperature rises above the set threshold. |
| · |
An event occurs when the difference between internal and external temperatures rises above the set threshold. |
| · |
The Red LED blinks when an event occurs.(the Green LED is on during normal operation) |
Accura 2350-GAS
| · |
TGS 813 gas sensor for detecting combustible gas[Tin dioxide(SnO2) Semiconductor] |
| · |
High-sensitivity measurement of various combustible gases, including methane, propane, and butane |
| · |
An "Over" event occurs when gas concentration rises
above the threshold value. |
| · |
LED blinks when an event occurs. |
Accura 2350-DO
| · |
8 digital output channels |
| · |
Remote control of digital outputs |
| · |
When an On command is issued to a DO channel,
the LED connected to the DO lights up. |
Accura 2350-VDC
| · |
DC voltage[-50V ~ 50V]: 8-channel differential inputs, non-isolated between channels |
| · |
Isolated between modules, AC 3,000V for one minute |
| · |
An "Over" event occurs when DC voltage rises above the set threshold value. |
| · |
An "Under" event occurs when DC voltage drops below the set threshold value. |
Accura 2350-IDC
| · |
DC current measurement[-20mA ~ 20mA]: 8-channel differential inputs,non-isolated between channels |
| · |
Isolated between modules, AC 3,000V for one minute |
| · |
An "Over" event occurs when the current rises above the set threshold value. |
| · |
An "Under" event occurs when the current drops below the set threshold value. |
Data Center Distribution Panel Digital Power Meter/Single Phase Three Feeder Power Measuring Module
Accura 2300S  Accura 2350-1P3FSC
Accura 2300S/2350-1P3FSC
| · |
Accurate Measurements: ±0.2/±0.5 % of
Reading (Voltage/Current) and Class 0.5S/
Class 0.2S (Active Energy) |
| · |
Proven Safety and Reliability
with CE/UL/KC Certifications |
| · |
Single Phase Three Feeder Power Measurment, demand |
| · |
Dip(Sag), Swell event |
| · |
Ethernet 2 ports(Ethernet switching) |
| · |
RS-485 1port |
| · |
Mounting(ANSI 4", DIN96) |
Standalone Input/Output Module
Accura MD-GAS
| · |
TGS813 gas sensor for the detection of combustible gas[tin dioxide(SnO2) semiconductor] |
| · |
High-sensitivity measurement of various combustible gases, including methane, propane, and butane |
| · |
An "Over" event occurs when the concentration of gases rises above the threshold value. |
| · |
When an event occurs, an On command is issued to a
DO(Digital Output) channel, and the LED connected to the DO blinks. |
Motor Management System
Motor Management System
Accura 2700M
| · |
Accura 2750P[C]/Accura 2750LCG/2750LC Link action |
| · |
Support for device redundancy
| - |
Active-Standby Operation |
|
| · |
Support for communication redundancy
| - |
Ethernet 2-port(Switch) |
| - |
Ring connection(RSTP protocol) |
|
| · |
MCC Incoming-line Measurement
| - |
Voltage IEC61557-12 Class 0.5 |
| - |
Current IEC61557-12 Class 0.2 |
| - |
Power IEC62053-22 Class 0.5S |
| - |
Demand, Peak Demand |
| - |
Harmonics, THD, TDD, Phasor, Unbalance |
|
| · |
Power quality : * Dip(Sag), Swell |
Accura 2700D
| · |
Incoming-Unit Integrated Module HMI Display |
| · |
Accura 2700M Link action |
| · |
Display information of entire MCC |
| · |
Support setup of entire MCC |
Accura 2750P[C]
| · |
Redundancy support for Device protection function
| - |
AND-Logic Operation: AND-Logic Operation of Two Devices |
|
| · |
Support for communication redundancy: Ring connection
| - |
Active-Standby Operation |
|
| · |
Motor-unit Measurement
| - |
Voltage IEC61557-12 Class 0.5 |
| - |
Current IEC61557-12 Class 0.5 |
| - |
Power IEC62053-22 Class 0.5S |
| - |
Ground current(ZCT) ±1% Reading |
| - |
Demand, Peak Demand |
| - |
Harmonics, THD, TDD, Phasor, Unbalance |
|
| · |
Motor-unit Protection
| - |
Thermal relay(THR), Over current relay, JAM relay, Long start relay, Unbalance current relay,
Phase out current relay, Phase sequence relay, Under current relay,
Ground fault relay(ZCT)
|
|
| · |
Motor-unit Control
| - |
Motor start stop command |
| - |
Starter mode: Direct starter, reversing starter, 2-speed starter, 2-step starter
|
|

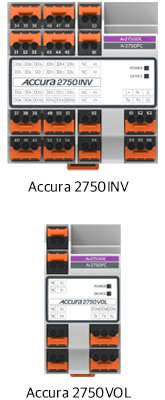

Accura 2750INV/VOL
| · |
Measuring the output voltage of Inverter-unit |
| · |
Connection with Accura 2750P[C](RS-485 communication) |
| · |
Connection with Motor-Unit HMI Module Accura 2750DCI(RS-485 Communication) |
| · |
Connection with Inverter(RS-485 communication) |
| · |
Digital input/output supported |
Accura 2750D[C/CI]
| · |
Motor-unit Protection&Control HMI Display |
| · |
Accura 2750P[C] Link action |
| · |
Display information of Motor-unit |
| · |
Support setup of Motor-unit |
Accura 2750LCG
| · |
Data relay function between Accura 2700M and Accura 2750LC |
| · |
Support for device redundancy
| - |
Active-Standby Operation |
|
| · |
Accura 2750LC Management function
|
| · |
Accura 2750LC Power supply
|
Accura 2750LC[I]
| · |
Motor control function in LOP field |
| · |
Support for communication redundancy: Ring connection |
Unit-Socket
| · |
Easy to separate communication line when withdrawing motor unit
|
| · |
T-stub removal function by communication line input/output structure
|
Bridge-Socket
| · |
Sharing function of RS-485 communication network of Accura 2750P[C] |
| · |
Sharing function of RS-485 communication network of Accura 2750LC |
Digital Power Meter
Digital Power Meter
Accura 3000
| · |
Voltage/current ±0.2% Reading |
| · |
Three phase measurement, energy(active) |
| · |
Maximum/minimum |
| · |
No communication |
Accura 3300E
| · |
Voltage/current ±0.2% Reading |
| · |
Three phase measurement, demand
|
| · |
Voltage/current THD, Current TDD
|
| · |
RS-485 1 port
|
New Accura 3500
| · |
Gapless Measurements of Voltage and Current:
Max/Min/Avg Values Available at Aggregation Intervals |
| · |
Accurate Measurements of Voltage, Current, Active Power, and Active Energy |
| · |
A Variety of Data Available for Power Quality Analysis |
| · |
Proven Safety and Reliability with CE/UL/KC Certifications (Renewal Process Underway) |
| · |
High-speed Data Transfer via Ethernet Communication |
| · |
Various IO Modules Easily Attachable to the Meter |
Accura 3500
| · |
Voltage/current ±0.2% Reading
|
| · |
Three phase measurement, demand
|
| · |
THD, maximum/minimum
|
| · |
DIO module(DI/DO 8/2 channels)
|
| · |
Only one module to be chosun as an option(DI/DO/AI/AO/A4P2/A2P4 extension module)
|
| · |
RS-485 1 port
|
Accura 3500E
| · |
Gapless Measurements of Voltage and
Current: Max/Min/Avg Values Available in
Aggregation Intervals |
| · |
A Variety of Data Available for Power Quality
Analysis |
| · |
Accurate Measurements of Voltage, Current, Active
Power, and Active Energy |
| · |
Proven Safe ty and Reliability with CE/UL/KC
Certifications(UL Certification Pending) |
| · |
High-Speed Data Transfer via Ethernet
Communication |
| · |
Various IO Modules Easily Attachable to the Meter |
New Accura 3550
| · |
Gapless Measurements of Voltage and Current:
Max/Min/Avg Values Available at Aggregation Intervals |
| · |
Accurate Measurements of Voltage, Current, Active Power, and Active Energy |
| · |
A Variety of Data Available for Power Quality Analysis |
| · |
Proven Safety and Reliability with CE/UL/KC Certifications (Renewal Process Underway) |
| · |
High-speed Data Transfer via Ethernet Communication |
| · |
Various IO Modules Easily Attachable to the Meter |
Accura 3550
| · |
Voltage/current ±0.2% Reading |
| · |
Three phase measurement, demand
|
| · |
DC voltage 1 channel, DC current 2 channels
|
| · |
RS-485 1 port
|
Digital Power Quality Meter
Digital Power Quality Meter
New Accura 3700
| · |
5” Color TFT LCD screen with touch panel |
| · |
Gapless Measurements of Voltage and Current
|
| · |
Accuracy class 0.2S(IEC 62053-22) for active energy
|
| · |
A Variety of Power Quality Data Available,
including Voltage Dip(Sag)/Swell
|
| · |
Power Quality Assessment with PQ Curve Data
|
| · |
Incresed number of IO expansions modules
(Up to 4 Modules)
|
| · |
Proven Safety and Reliability with
CE/UL Certifications
|
| · |
Detachable Power Module
|
Accura 3700
| · |
Voltage/current ±0.2% Reading |
| · |
Three phase measurement, demand
|
| · |
THD, TDD, maximum/minimum
|
| · |
Dip(Sag)/swell event
|
| · |
Ethernet 2 ports(Ethernet switching)
|
| · |
RS-485 1 port
|
| · |
Mounting(ANSI 4", DIN96)
|
|
|
|
|
|
|
|
|
|
|
Accura 5500
| · |
Voltage/current ±0.1% Reading |
| · |
Energy IEC62053-22 Class 0.2S |
| · |
Dip(Sag)/swell event |
| · |
Flicker, transients |
| · |
Ethernet 1 port |
Digital Integrated Protection Relay
Digital Integrated Protection Relay
Accura 7300
| · |
Essential Protection Relay Elements Available |
| · |
Event Logging and Fault Recording Functions for Post-Fault Analysis
|
| · |
Various Monitoring Functions
|
| · |
Integration of Protection Relay and Power Quality Meter Functions
|
| · |
Protection Relay Operation Based on Accurate Measurements
|
| · |
Gapless Voltage and Current Measurements with Max/Min/Avg Values at Various Aggregation Intervals
|
| · |
Accurate Measurements of Voltage, Current, Active Power, and Active Energy
|
| · |
A Variety of Power Quality Data Available: Dip(Sag)/Swell, Harmonics (Up to the 50th Order), Crest Factor, K-Factor, and Unbalance
|
| · |
Power Quality Assessment Using PQ Curve Data
|
| · |
Easy Device Controls
|
| · |
Proven Safety and Reliability with CE and KC Certifications
|
Accura 7500
| · |
Feeder protection |
| · |
Voltage/current ±0.2% Reading
|
| · |
Three phase measurement, demand
|
| · |
Digital input(CB status 1 channel + 10 channels)
|
| · |
Digital output(CB ON, CB OFF, ALARM)
|
| · |
Digital output(10 Channels)
|
| · |
RS-485 1 port
|
Software
Software
Data Management System
PowerDX1.25
| · |
Demand management
|
| · |
Setup
|
| · |
Searching chart
|
| · |
Realtime quality analysis
|
| · |
Space group
|
| · |
Load characteristic group
|
PowerDX2
| · |
“Solution-type” program enables engineering companies to build with PowerDX2 |
| · |
Web-based SCADA Program + |
| · |
Massive Data Processing |
| · |
Provides Power Quality Analysis Function(Accura Product Family) |
| · |
Component-based Screen Composition |
PowerDX3
| · |
“Solution-type” program enables engineering companies to build with PowerDX2 |
| · |
Responsive Web-based SCADA Program + |
| · |
Massive Data Processing |
| · |
Provides Power Quality Analysis Function(Accura Product Family) |
| · |
Component-based Screen Composition |
Accura Software
AccuraSM
| · |
Provides communication status data
-RSTP Ring Diagram |
| · |
Provides measurement values |
| · |
Supports the harmonic graph for each harmonic order |
| · |
Waveform |
| · |
Provides Event record/Value trend data |
| · |
Enables users to change set values and provides the backup/upload functions |
| · |
Provides digital input status data |
| · |
Controls digital outputs |
| · |
Provides analog input data |
AccuraDM
| · |
Real-time monitoring and exporting data on multiple devices |
| · |
Limitation on the number of monitored devices |
| · |
IP based device registration and module search |
| · |
Panel view on monitored devices |
| · |
Detailed measurement data view |
| · |
Measurement and power quality event view |
| · |
Trend view |
| · |
Energy usage view |
| · |
Exporting data on monitored devices
(CVS or EXCEL format) |
|
